FP10C50SQ.25B
Flat Pack FP 10L
TopLine Dummy Component
For training, practice and evaluation

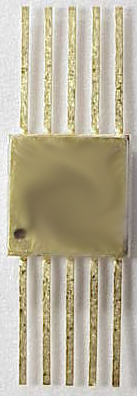

Top View FP10C50SQ.25B

Click for Outline Drawing

 Quick Specs:
Pin Count 10L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.255" SQ (6.5mm SQ)
Bottom Braze flat lead without tie-bar
Standard Packaging in plastic carrier

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers without Tie-Bar:
Packed in plastic carrier
FP10C50SQ.25B = Gold Leads. With Lid
FP10C50SQ.25B-SC = Solder Dip. With Lid


Part Numbering System
FP 10 C 50 SQ .25 B - -
Series Nbr Pins Lead
Shape		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 10 = 10Leads Flat Leads
without Tie-bar
Packed
in carrier		 50 Mils
0.050-inch
1.27mm		 Square 0.255" SQ
6.5mm SQ		 Bottom   -DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.



Daisy Chain Option -DE
