FP10F50SQ.25S

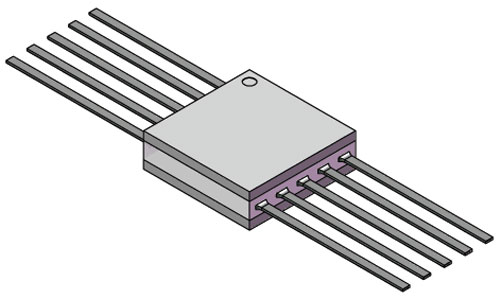

Flat Pack FP 10L
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

 Quick Specs:
Pin Count 10L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.255" SQ (6.5mm SQ)
Side Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP10C50SQ.25S = Gold Leads. With Lid
FP10C50SQ.25S-SC = Solder Dip. With Lid
FP10C50SQ.25S-N = Gold Leads. Without Lid
FP10C50SQ.25S-DE = Daisy Chain. Gold Leads
FP10C50SQ.25S-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 10 C 50 SQ .25 S - DE
Series Nbr Pins Lead
Shape		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 10 = 10 Leads Flat Leads
C= In Carrier
F= With Tie-Bar		 50 Mils
0.050-inch
1.27mm		 Square 0.255" SQ
6.5mm SQ		 Side   -N=Without lid
-DE=Daisy Chain
-ISO=Isolated Pins
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.



Daisy Chain Option -DE
