TO257
JEDEC TO-257AA Package
TopLine Dummy Component
For training, practice and evaluation


Click for Drawing:
TO257 with Tab •  TO257L without Tab

Quick Specs:
Pin Count 3L
Pitch 0.150" (3.81mm)
Body 0.415"x0.415"x0.19"
Flange 0.65L"x.415W"
Metal Body

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
Gold Plated (Sealed Lid):
TO257-G = Dummy Sealed Lid
TO257-CuW-G = Base W85/Cu15
TO257-OFHC-G = Base Cu Copper

Gold Plated (Open Cavity. Without Lid):
TO257-CuW-G-N = Base W85/Cu15
TO257-OFHC-G-N = Base Cu Copper

Rotatable Models:

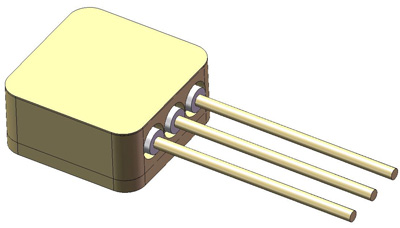

TO-257L Tabless

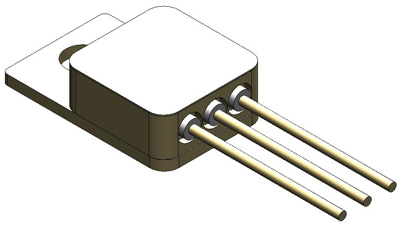

TO-257 With Tab


Part Numbering System
TO257 - Option Daisy Chain LID
JEDEC Series Base Option Plating Optional Lid Options
TO-257 With Tab
Standard

TO-257L Tabless
Blank= Not Defined
Standard Dummy

CuW=W85/Cu15
OFHC=Cu Copper
G= Au (Gold)
Blank = Not Defined
Blank= Without
Daisy Chain

DC123 Pins 1-2-3
Connected
Blank= Sealed Lid


-N = Open Cavity
Unattached Lid
Options: open Headers and cans available for packaging live die.
State your die size requirement.
