QFN
Quad Flat No Lead
JEDEC MO-220

  DFN Dual Side  •   All Daisy Chain (PDF)   •   M-QFN - Open Cavity  •   Lead Free   •   CTE    •     JEDEC TRAYS

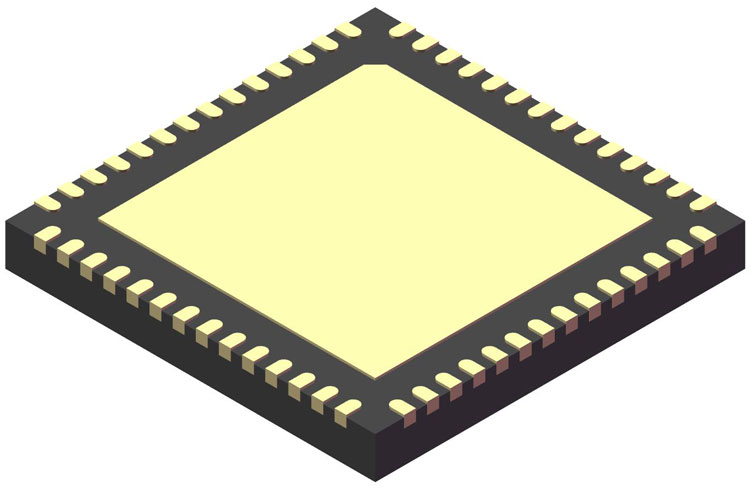

QFN Bottom

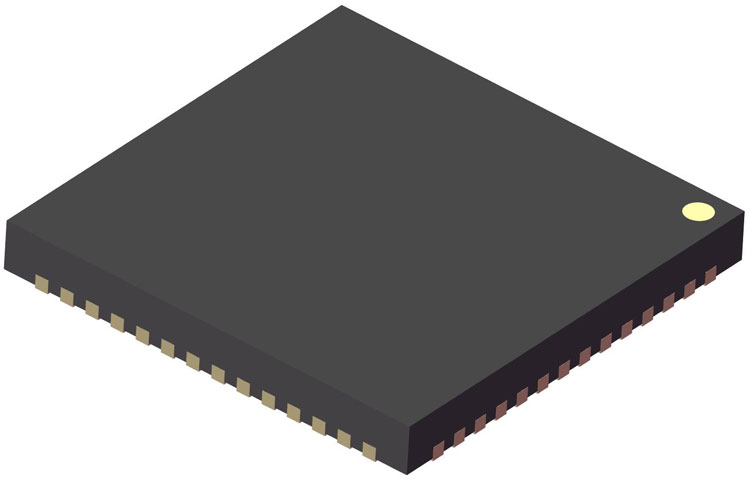

QFN TOP

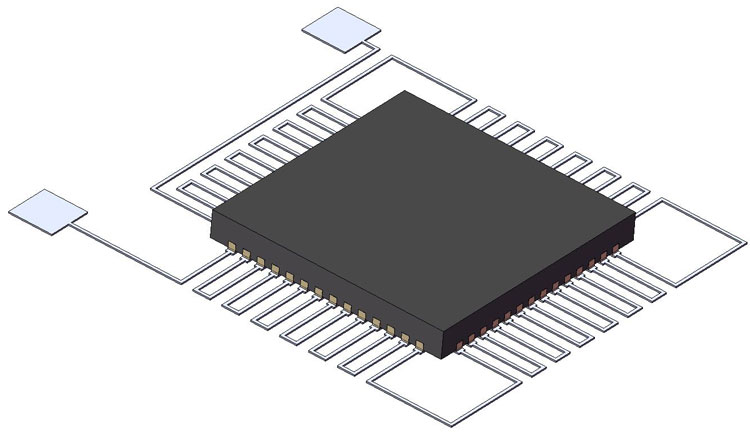

Daisy Chain
After Mounting to PCB

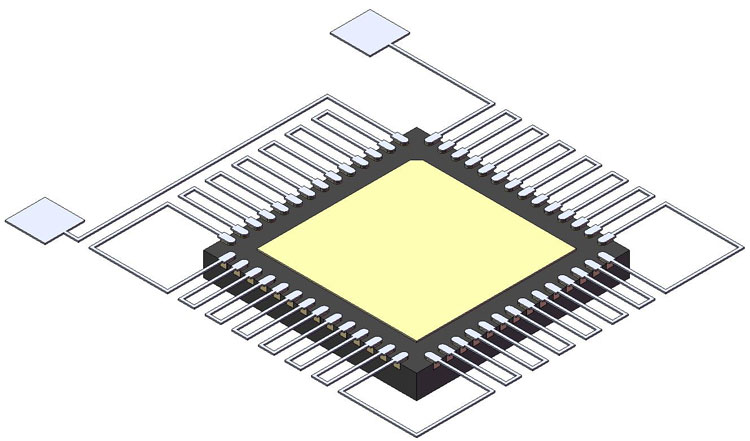

Daisy Chain
After Mounting to PCB

Leads Pitch Body Size Lead Free
Plating Options		 Ground
Pad
Size		 TopLine Part Number Daisy Chain 360° Solidworks
Rotatable Model
QFN - Quad Sided
8 0.65mm 3mm SQ NiPdAu 1.7mm
 		 QFN8T.65-F-DE-D Daisy Chain QFN8T.65
Model
12 0.4mm 2mm SQ Sn100 1.1mm QFN12M.4
QFN12E.4		 Daisy Chain
12 0.5mm 3mm SQ Sn100 1.2mm QFN12M.5
QFN12T.5		 Daisy Chain
12 0.65mm 4mm SQ Sn100 Tube
Tray		 QFN12M.65
QFN12T.65		 Daisy Chain
12 0.8mm 4mm SQ NiPdAu Tray
 		 QFN12T.8-F Daisy Chain
16 0.5mm 3mm SQ Sn100
Ni Pd Au		 1.7mm
1.5mm		 QFN16T.5-T-DE-D1.7
QFN16T.5-F-DE-D1.5		 Daisy Chain QFN16T.5
Model
16 0.65mm 4mm SQ Ni Pd Au
Sn100		 2.6mm QFN16M.65-F-DE-D2.6 Daisy Chain QFN16T.65
Model
16 0.8mm 5mm SQ Sn100 3.2x3.5mm MLF16T.8-T-DE-D3.2 Daisy Chain MLF16T.8
Model
20 0.5mm 4mm SQ NiPdAu 2.5mm QFN20T.5-F-DE-D Daisy Chain QFN20T.5F
Model
20 0.65mm 5mm SQ Sn100 3.2mm QFN20T.65-T-DE-D Daisy Chain
20 0.65mm 5mm SQ NiPdAu 3.7mm QFN20T.65-F-DE-D Daisy Chain QFN20T.65F
Model
24 0.5mm 4mm SQ Sn100
NiPdAu		 2.0mm QFN24T.5-T
QFN24T.5-F		 Daisy Chain QFN20T.5F
Model
24 0.65mm 5mm SQ Sn100
 3.4mm QFN24M.65
QFN24T.65		 Daisy Chain
24 0.8mm 6mm SQ NiPdAu 4.0mm QFN24T.8-F-DE-D4.0 Daisy Chain QFN24T.8
Model
28 0.5mm 5mm SQ Sn100 3.2mm QFN28T.5-T-DE-D Daisy Chain QFN28T.5
Model
28 0.65mm 6mm SQ Sn100 Tube
Tray		 QFN28M.65-T-DE-4.7 Daisy Chain QFN28T.65
Model
32 0.5mm 5mm SQ Sn100 Tube
Tray		 QFN32M.5
QFN32T.5		 Daisy Chain
32 0.5mm 5mm SQ NiPdAu 3.2mm QFN32T.5-F-DE-D Daisy Chain QFN32T.5F
Model
32 0.5mm 5mm SQ NiAu 3.2mm QFN32T.5-G-DE-D Daisy Chain QFN32T.5G
Model
32 0.5mm 5mm SQ Ni-Au
SnPb		 Tray C-QFN32T.5-G-DE
C-QFN32T.5-DE-SC		 Daisy Chain C-QFN32T.5G
Model
32 0.65mm 7mm SQ Sn100 Tube
Tray		 QFN32M.65
QFN32T.65		 Daisy Chain
36 0.5mm 6mm SQ Sn100 Tube
Tray		 QFN36M.5
QFN36T.5		 Daisy Chain
40 0.4mm 5mm SQ NiPdAu 3.4mm QFN40T.4-F-DE-D Daisy Chain QFN40T.4
Model
40 0.5mm 6mm SQ Sn100 4.2mm QFN40T.5-T-DE-D Daisy Chain QFN40T.5
Model
44 0.5mm 7mm SQ Sn100 5.5mm QFN44T.5-T-DE-D5.5 Daisy Chain QFN44T.5
Model
44 0.65mm 8mm SQ NiPdAu 6.5mm QFN44T.65-F-DE-D6.5 Daisy Chain QFN44T.65
Model
48 0.35mm 5mm SQ Sn100 3.7mm QFN48T.35-T-DE-D3.7
Pad Pattern
2X(14L+10L)		 Daisy Chain
Special		 QFN48T.35
Model
48 0.4mm 6mm SQ Sn100 4.0mm QFN48T.4-T-DE-D4.0 Daisy Chain QFN48T.40
Model
48 0.4mm 6mm SQ NiPdAu 4.4mm QFN48T.4-F-DE-D4.4 Daisy Chain QFN48T.4
Model
48 0.5mm 7mm SQ NiPdAu 5.6mm QFN48T.5-F-DE-D5.6 Daisy Chain QFN48T.5
Model
48 0.5mm 7mm SQ Sn100 5.6mm QFN48T.5-T-DE-D5.6 Daisy Chain QFN48T.5
Model
48 0.5mm 7mm SQ NiPdAu 5.6mm QFN48T.5-F-ISO ISOLATED QFN48T.5
Model
52 0.5mm 8mm SQ Sn100 6.2mm QFN52T.5-T-DE-D Daisy Chain QFN52T.5
Model
56 0.35mm 6mm SQ Sn100 TBA QFN56T.35-T-DE-D Daisy Chain QFN56T.35
Model
56 0.4mm 7mm SQ Sn100 5.2mm QFN56T.4-T-DE-D Daisy Chain QFN56T.4
Model
56 0.4mm 7mm SQ NiPdAu 5.6mm QFN56T.4-F-DE-D Daisy Chain QFN56T.4
Model
56 0.5mm 8mm SQ Sn100 4.4x5.1mm QFN56T.5-T-DE-D5.1 Daisy Chain QFN56T.5-D5.1
Model
56 0.5mm 8mm SQ Sn100 6.0mm QFN56T.5-T-DE-D6.0 Daisy Chain QFN56T.5
Model
56 0.5mm 8mm SQ NiPdAu 6.6mm QFN56T.5-F-DE-D6.6 Daisy Chain QFN56T.5
Model
56 0.5mm 8mm SQ NiPdAu 6.6mm QFN56T.5-F-ISO ISOLATED QFN56T.5-F-ISO
Model
64 0.5mm 9mm SQ Sn100 6.2mm QFN64T.5-T-DE-D6.2 Daisy Chain QFN64T.5-D6.2
Model
64 0.5mm 9mm SQ NiPdAu 7.5mm QFN64T.5-F-DE-D7.5 Daisy Chain QFN64T.5-D7.5
Model
68 0.35mm 7mm SQ Sn100 TBA QFN68T.35-T-DE-D Daisy Chain QFN68T.35
Model
68 0.4mm 8mm SQ Sn100 6.2mm QFN68T.4-T-DE-D6.2 Daisy Chain QFN68T.4-T
Model
68 0.4mm 8mm SQ NiPdAu 6.1mm QFN68T.4-F-DE-D6.1 Daisy Chain QFN68T.4-F
Model
68 0.5mm 10mm SQ NiAu 6.0mm LQFN68T.5-T-DE-D6.0 Daisy Chain LQFN68
Model
68 0.5mm 10mm SQ NiAu 7.7mm LQFN68T.5-G-DE-D7.7 Daisy Chain LQFN68
Model
68 0.5mm 10mm SQ Sn100 7.7mm MLF68T.5-T-DE-D7.7 Daisy Chain MLF68
Model
68 0.5mm 10mm SQ NiPdAu 7.7mm QFN68T.5-F-DE-D7.7 Daisy Chain QFN68
Model
72 0.5mm 10mm SQ NiPdAu 8.7mm QFN72T.5-F-DE-D8.7 Daisy Chain QFN72
Model
80 0.5mm 12mm SQ Sn100 9.1mm QFN80T.5-T-DE-D9.1 Daisy Chain QFN80
Model
80 0.5mm 12mm SQ NiPdAu 9.3mm QFN80T.5-F-ISO ISOLATED QFN80
Model
88 0.4mm 10mm SQ NiAu 7.6mm QFN88T.4-G-DE-D7.6 Daisy Chain QFN88
Model
88 0.4mm 10mm SQ NiPdAu 7.6mm QFN88T.4-G-DE-D8.3 Daisy Chain QFN88
Model
100 0.4mm 12mm SQ NiPdAu 10mm QFN100T.4-F-DE-D10 Daisy Chain QFN100
Model
100 0.4mm 12mm SQ Sn100 10mm QFN100T.4-T-DE-D10 Daisy Chain QFN100
Model
100 0.4mm 12mm SQ Sn100 10mm QFN100T.4-T-ISO ISOLATED QFN100
Model
156 0.5mm 12mm SQ Ni-Au 12mm LQFN156T.5-G-DE-D9.0 Daisy Chain LQFN156
Model

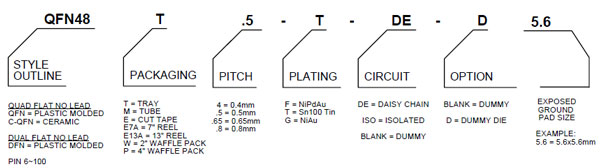

Part Number System

Options: Lead Free

Part Number Suffix: Add -T = Lead Free Sn100
Part Number Suffix: Add -F = Lead Free Ni-Pd-Au
Part Number Suffix: Add -G = Lead Free Ni-Au (Gold) Ceramic Only
Part Number Suffix: Add -SC = Hot dipped SnPb solder
Add -DE to end of part number for Daisy Chain
For Reels, Change "M or T" to "E7A"

Typical Plating Thickness:
Code "F" NiPdAu: Ni 0.20~0.70um / Pd 0.05~0.30um / Au 0.02~0.15um
Code "T" Sn Matte Tin: 10~20um (400~800 micro-inch)
Code "G" Ni/Au: Ni 2.5~7.6um / Au 1.0~2.0um
