03015 Metric Chip
Metric 0.3mm x 0.15mm

Chip Menu   Resistor   Tantalum   Inductor   Melf   AL Cap   Chip Array   Bulk Cassette

Go to: 01005 Chips
Resistor  • Pb-Free  • RoHS  • Tin (Sn) • Lead Free
Size
(inch)		 Size
(metric) 		Taping
Standard		 Tape
Dimensions		 Ohm Qty
per Reel		 Order Number
0.012" x 0.006" 03015 Metric
0.30 x 0.15mm		 W4P1
Plastic		 Width - 4mm
Pitch - 1mm		 Zero Ohm 40,000
20,000
10,000
5,000
1,000		 SR03015E7A-ZERO-W4P1

0.012" x 0.006" 03015
0.30 x 0.15mm		 W4P1
Plastic		 Width - 4mm
Pitch - 1mm		 DUMMY 40,000
20,000
10,000
5,000
1,000		 SR03015E7A-W4P1

0.012" x 0.006" 03015
Bottom
Terminated
0.30 x 0.15mm		 W4P1
Plastic		 Width - 4mm
Pitch - 1mm		 DUMMY 40,000
20,000
10,000
5,000
1,000		 SR03015BT-E7A-W4P1

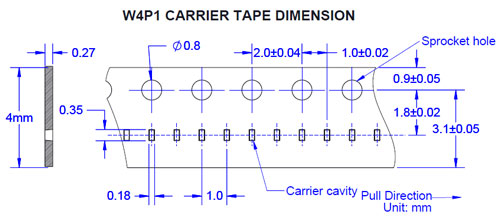

Tape Specification


Tape Dimensions
Code Size
(metric)
P1 1.0mm ±0.02
Po 2.0mm ±0.04
P2 1.0mm ±0.02
Ao 0.18mm ±0.02
Bo 0.35mm ±0.02
W 4.0mm ±0.05
E 0.9mm ±0.05
F 1.8mm ±0.04
Do 0.8mm ±0.04
T1 0.15 ~ 0.40mm
T2 0.5mm Max
