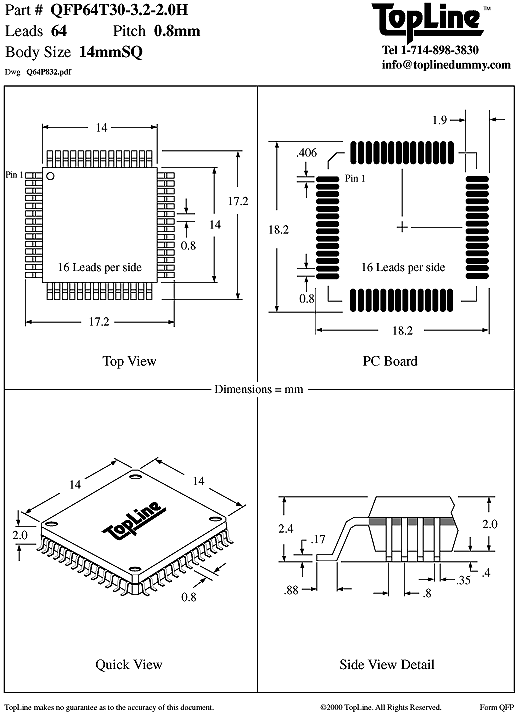

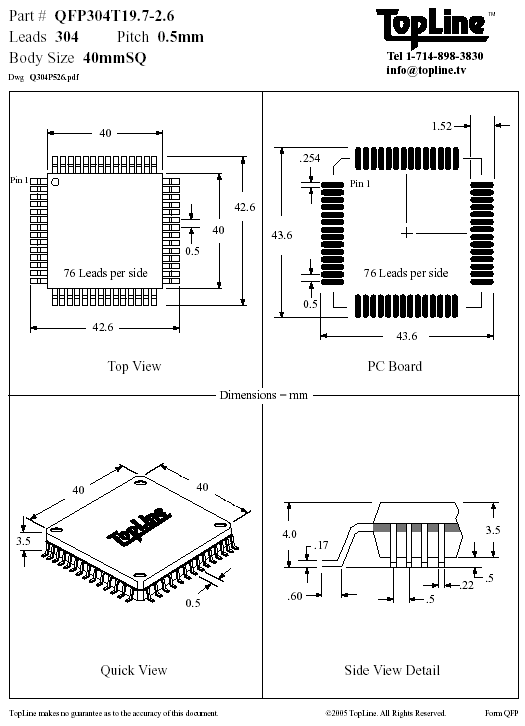

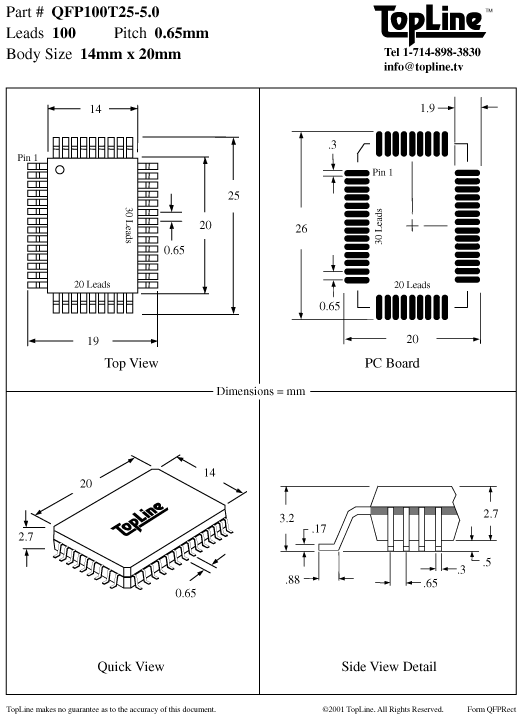

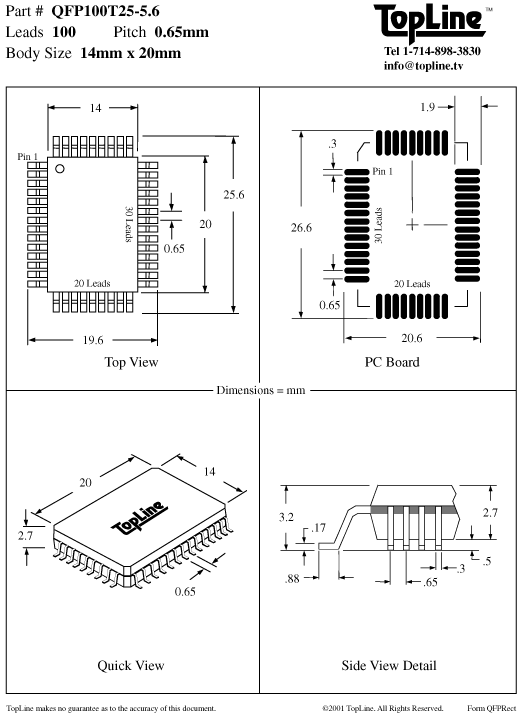

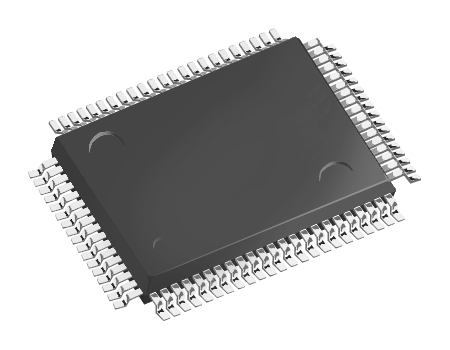

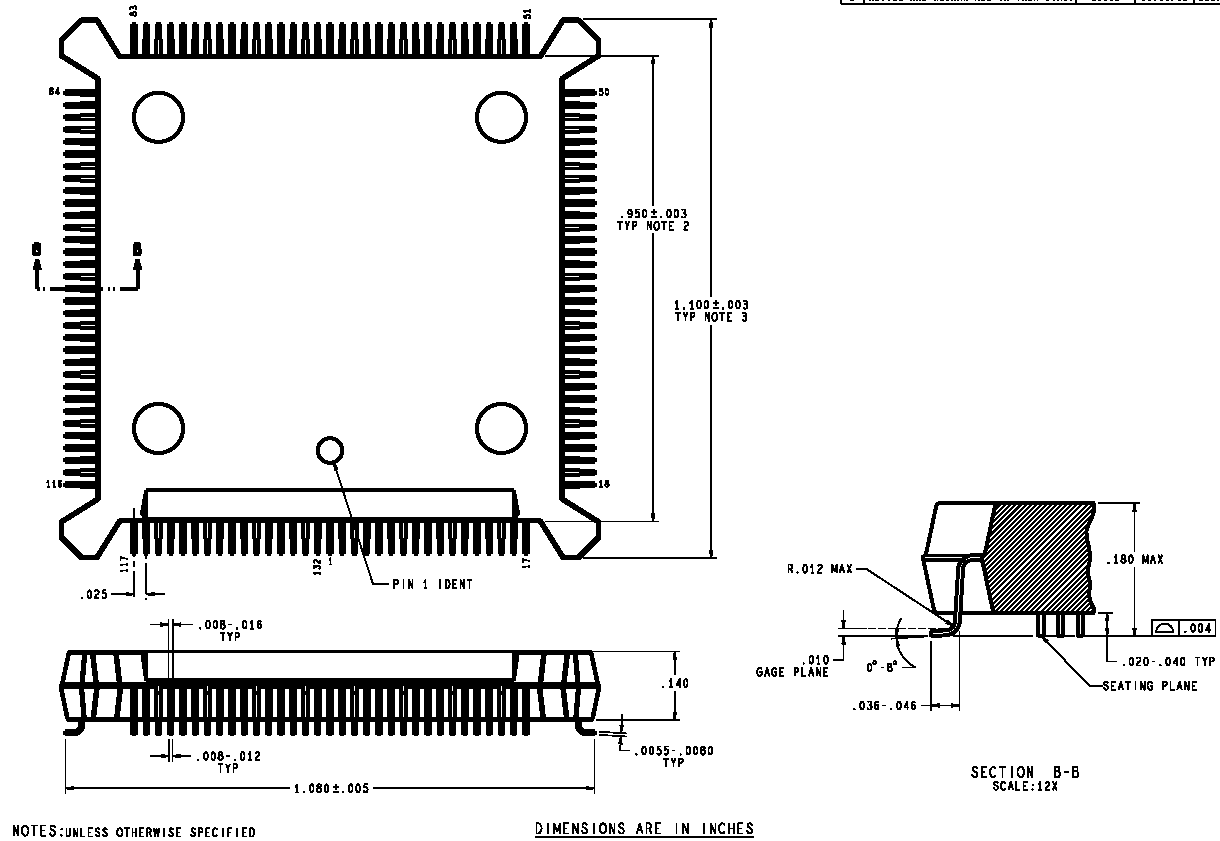

MQFP Metric Quad Flat Pack   64 Page Complete QFP Drawings Library PDF Format (1.5Mb)   MQFP Quad Flat Pack Go to--> LQFP   TQFP   BQFP Daisy Chain   Trays   Practice Boards QFP Lead Straightener Tool Leads Foot Print Adder Body Size Lead Pitch Tray Qty Part Number Click for Drawing PDF Drawing 44 3.2mm 10 x 10mm 0.8mm (31.5mil) 96 QFP44T30-3.2 PDF 44 3.9mm 10 x 10mm 0.8mm (31.5mil) 96 QFP44T30-3.9 PDF 44 3.2mm 14 x 14mm 1.0mm (40mil) 84 QFP44T40-3.2 PDF 44 4.3mm 14 x 14mm 1.0mm (40mil) 84 QFP44T40-4.3 PDF 52 3.2mm 10 x 10mm 0.65mm (25.6mil) 96 QFP52T25-3.2 PDF 52 3.9mm 10 x 10mm 0.65mm (25.6mil) 96 QFP52T25-3.9 PDF 52 3.2mm 14 x 14mm 1.0mm (40mil) 84 QFP52T40-3.2 PDF 64 3.2mm 10 x 10mm 0.5mm (19.7mil) 96 QFP64T19.7-3.2 PDF 64 3.2mm 14mm x 2.0H 0.8mm (31.5mil) 84 QFP64T30-3.2-2.0H PDF 64 3.2mm 14mm x 2.7H 0.8mm (31.5mil) 84 QFP64T30-3.2-2.7H PDF 64 3.2mm 14 x 20mm 1.0mm (40mil) 60~66 QFP64T40-3.2 PDF 64 3.9mm 14 x 20mm 1.0mm (40mil) 66 QFP64T40-3.9 PDF 64 4.7mm 14 x 20mm 1.0mm (40mil) 40~50 QFP64T40-4.7 PDF 80 3.2mm 14mm x 2.0H 0.65mm (25.6mil) 84 QFP80T25-3.2-2.0H PDF 80 3.2mm 14mm x 2.7H 0.65mm (25.6mil) 84 QFP80T25-3.2-2.7H PDF 80 3.2mm 14 x 20mm 0.8mm (31.5mil) 66 QFP80T30-3.2 PDF 80 3.9mm 14 x 20mm 0.8mm (31.5mil) 66 QFP80T30-3.9 PDF 100 2.0mm 14 x 14mm 0.5mm (19.7mil) 50 SQFP100T19.7-2.0 PDF 100 3.2mm 14 x 20mm 0.65mm (25.6mil) 66 QFP100T25-3.2 PDF 100 3.9mm 14 x 20mm 0.65mm (25.6mil) 66 QFP100T25-3.9 PDF 100 5.0mm 14 x 20mm 0.65mm (25.6mil) 50 QFP100T25-5.0 PDF 100 5.6mm 14 x 20mm 0.65mm (25.6mil) 60 QFP100T25-5.6 PDF 100 3.3mm 19mm + Bumper 0.635mm (25mil) 55 BQFP100T25 - 120 3.2mm 28 x 28mm 0.8mm (31.5mil) 24 QFP120T30-3.2 PDF 120 3.9mm 28 x 28mm 0.8mm (31.5mil) 24 QFP120T30-3.9 PDF 128 3.2mm 14 x 20mm 0.5mm (19.7mil) 66 QFP128T19.7-3.2 PDF 128 3.2mm 28 x 28mm 0.8mm (31.5mil) 24 QFP128T30-3.2 PDF 128 3.9mm 28 x 28mm 0.8mm (31.5mil) 24 QFP128T30-3.9 PDF 132 3.3mm 24mm + Bumper 0.635mm (25mil) 36 BQFP132T25 PDF 136 3.2mm 28 x 28mm 0.8mm (31.5mil) 24 QFP136T30-3.2 PDF 144 2.0mm 20 x 20mm 0.5mm (19.7mil) 50 SQFP144T19.7-2.0 PDF 144 2.6mm 28 x 28mm 0.65mm (25.6mil) 24 QFP144T25-2.6 PDF 144 3.2mm 28 x 28mm 0.65mm (25.6mil) 24 QFP144T25-3.2 PDF 144 3.9mm 28 x 28mm 0.65mm (25.6mil) 24 QFP144T25-3.9 PDF 160 2.6mm 28 x 28mm 0.65mm (25.6mil) 24 QFP160T25-2.6 PDF 160 3.2mm 28 x 28mm 0.65mm (25.6mil) 24 QFP160T25-3.2 PDF 160 3.9mm 28 x 28mm 0.65mm (25.6mil) 24 QFP160T25-3.9 PDF 184 2.6mm 28 x 28mm 0.5mm (19.7mil) 24 QFP184T19.7-2.6 PDF 208 2.6mm 28 x 28mm 0.5mm (19.7mil) 24 QFP208T19.7-2.6 PDF 240 2.6mm 32 x 32mm 0.5mm (19.7mil) 24 QFP240T19.7-2.6 PDF 256 2.6mm 28 x 28mm 0.4mm (15.7mil) 24 QFP256T15.7-2.6 PDF 304 2.6mm 40 x 40mm 0.4mm (15.7mil) 12 QFP304T19.7-2.6 PDF Daisy Chain and Lead Free Available.
