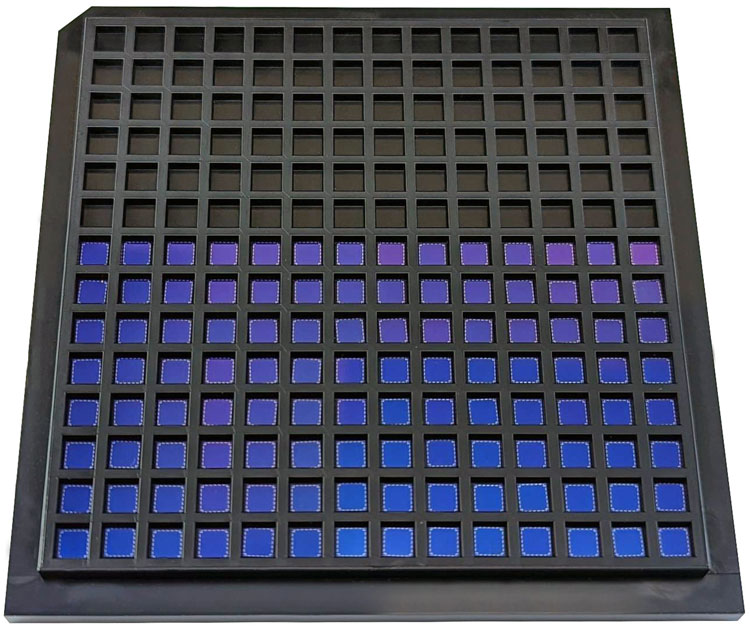

4-Inch Waffle Pack For Bare-Die |
|||||||
 | |||||||||
|
|||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pocket Size | Quantity Pockets Per Tray |
Matrix Row-Column |
Order TopLine Part Number |
||||
| 4-Inch Waffle Pack | |||||||
| 1mm SQ | 900 | 30 x 30 | WP4-1.0x1.0x0.6-B | ||||
| 2mm SQ | 870 | 29x 30 | WP4-2.0x2.0x0.6-B | ||||
| 3mm SQ | 400 | 20 x 20 | WP4-3.0x3.0x0.6-B | ||||
| 4mm SQ | 256 | 16 x 16 | WP4-4.0x4.0x0.6-B | ||||
| 5mm SQ | 144 | 12 x 12 | WP4-5.0x5.0x0.6-B | ||||
| 6mm SQ | 144 | 12 x 12 | WP4-6.0x6.0x0.6-B | ||||
| 7mm SQ | 100 | 10 x 10 | WP4-7.0x7.0x1.0-B | ||||
| 8mm SQ | 81 | 9 x 9 | WP4-8.0x8.0x1.0-B | ||||
| 9mm SQ | 64 | 8 x 8 | WP4-9.0x9.0x1.0-B | ||||
| 10mm SQ | 49 | 7 x 7 | WP4-10x10x1.0-B | ||||
| 12mm SQ | 36 | 6 x 6 | WP4-12x12x1.0-B | ||||
| 13mm SQ | 36 | 6 x 6 | WP4-13x13x1.0-B | ||||
| 14mm SQ | 25 | 5 x 5 | WP4-14x14x1.0-B | ||||
| 15mm SQ | 25 | 5 x 5 | WP4-15x15x1.0-B | ||||
| 17mm SQ | 16 | 4 x 4 | WP4-17x17x1.0-B | ||||
| 19mm SQ | 16 | 4 x 4 | WP4-19x19x1.0-B | ||||
| 21mm SQ | 9 | 3 x 3 | WP4-21x21x1.0-B | ||||
| 25mm SQ | 9 | 3 x 3 | WP4-25x25x3.3-B | ||||
| 39mm SQ | 4 | 4 x 4 | WP4-39x39x1.0-B | ||||
| Notes: Many other size pockets available for square and rectangular die. Specify thickness of component when ordering. | |||||||
| |||||||
| Accessories Various options including covers, clips, inserts, labels, etc. | |||||||
| Accessory | Description | Note | Order TopLine Part Number |
 360° SolidworksRotatable Model |
|||

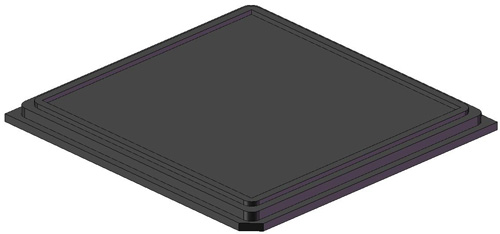

| Cover Standard |
4-inch Standard Cover |
  |
Black WP4-COVER DP#140200 | WP4-COVER-B Black Model |
|||
| Extension Cover | For tall components. Adds 0.25mm (0.010") to depth of bottom pocket. |
 |
Black WP4-0.25MM-COVER DP#140101 |
WP4-0.25MM-COVER Model |
|||
| Extension Cover | For tall components. Adds 1.7mm (0.070") to depth of bottom pocket. |
|
Black WP4-1.7MM-COVER DP#140700 |
WP4-1.7MM-COVER Model |
|||

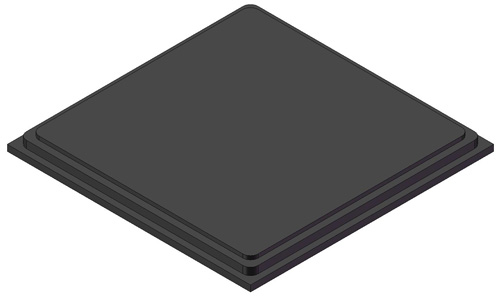

| Extension Cover | For tall components. Adds 2.0mm (0.080") to depth of bottom pocket. |
 |
Black WP4-2.0MM-COVER DP#140800 |
WP4-2.0MM-COVER Model |
|||

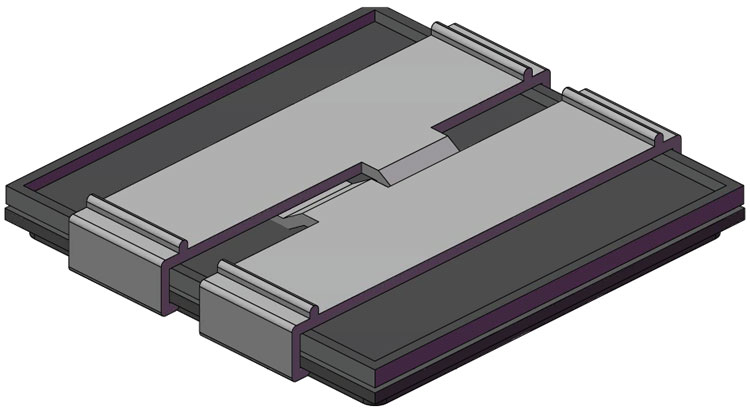

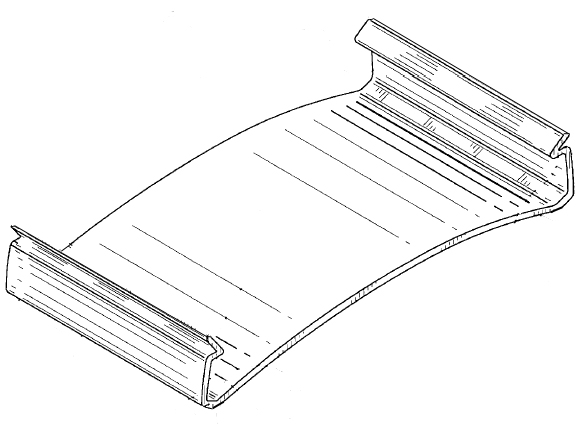

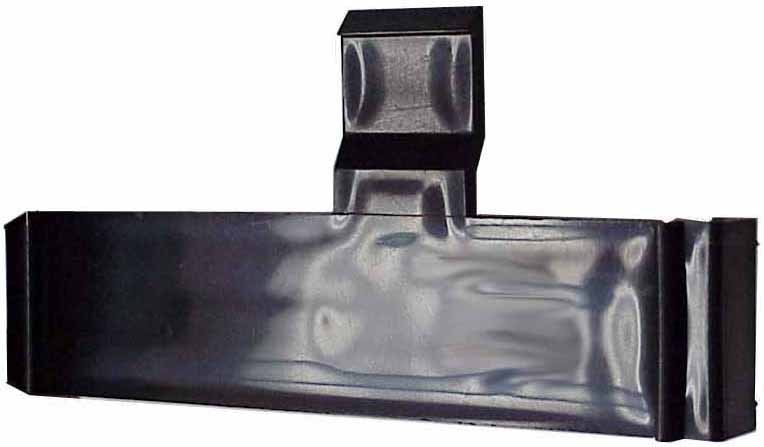

| Clip | STANDARD Holds 1-Tray and 1-Cover Order 2x clips. |

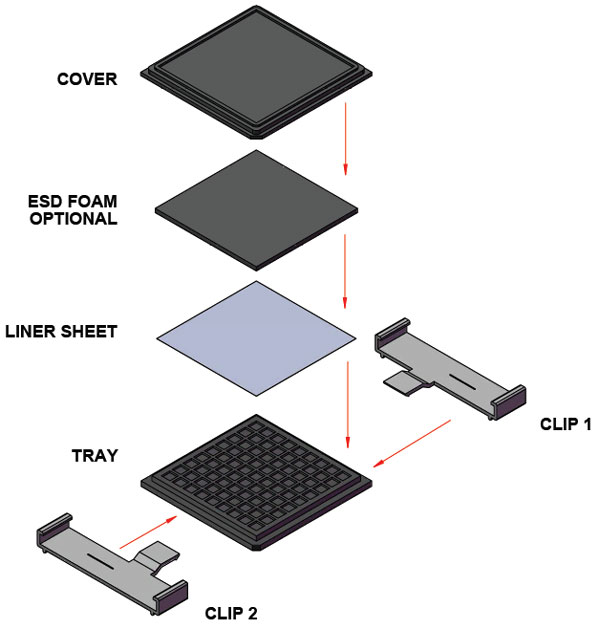

 Click for Assembly |
Requires 2 clips per stack Tray + Top Cover Natural Color WP4-CLIP-N DP#153777 Black Color WP4-CLIP-B DP#140022 |

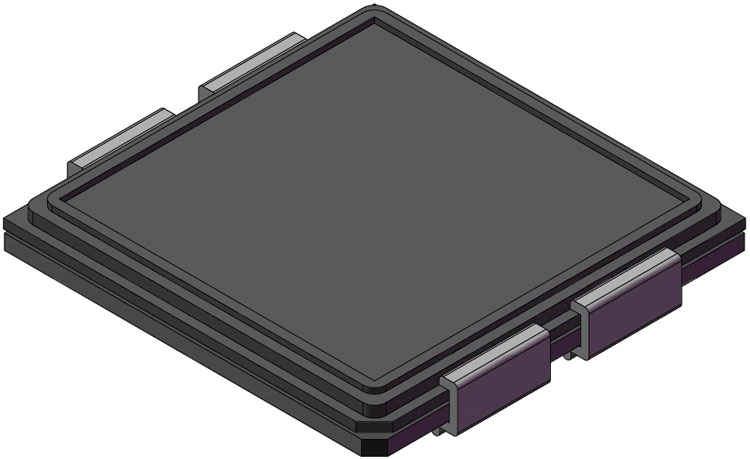

WP4-CLIP-TRAY+COVER Model TOP • BOTTOM |
|||

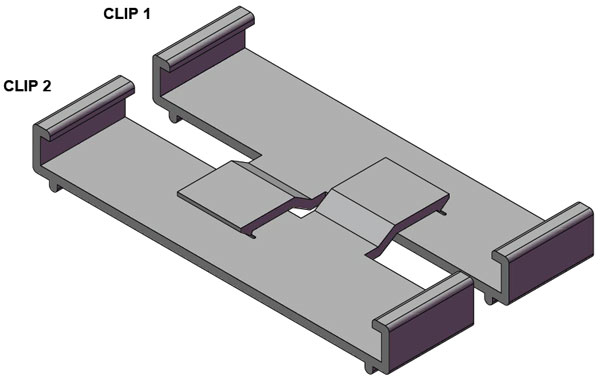

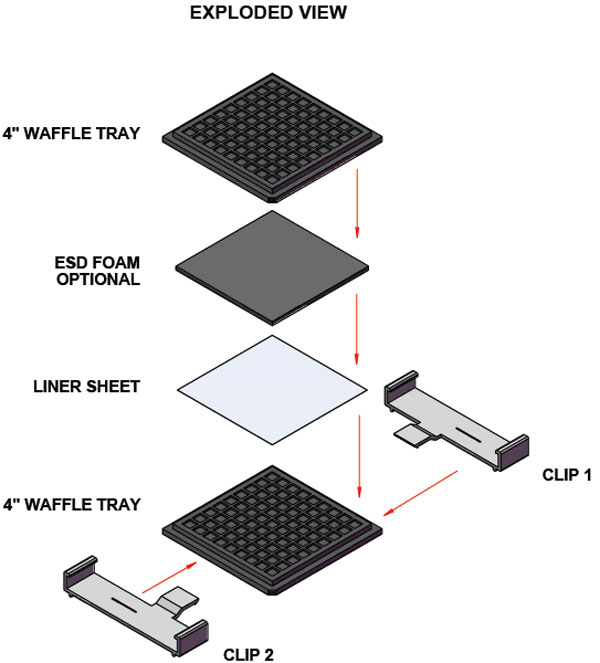

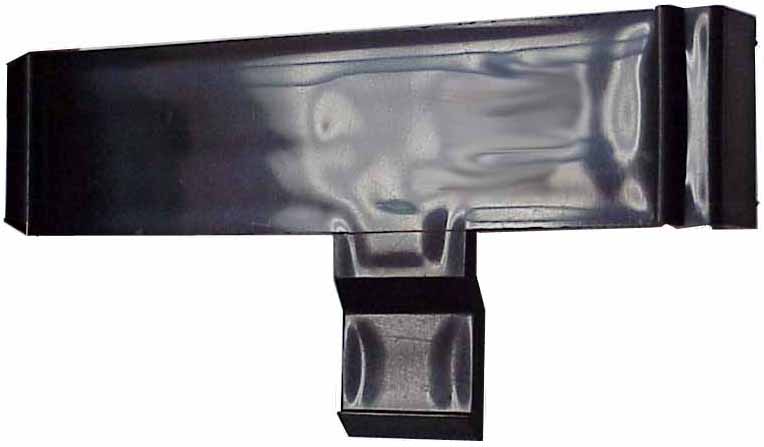

| Clip | SPECIAL Holds 1-tray and 1-tray Order 2x clips. |
 Click for Assembly |
Requires 2 clips per stack Tray + Tray Natural Color WP4-CLIP-TRAY+TRAY-N DP#041061 Black Color WP4-CLIP-TRAY+TRAY-B DP#444161 |

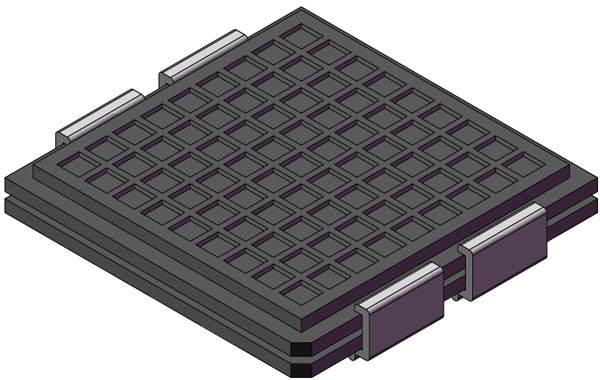

WP4-CLIP-TRAY+TRAY Model TOP • BOTTOM |
|||

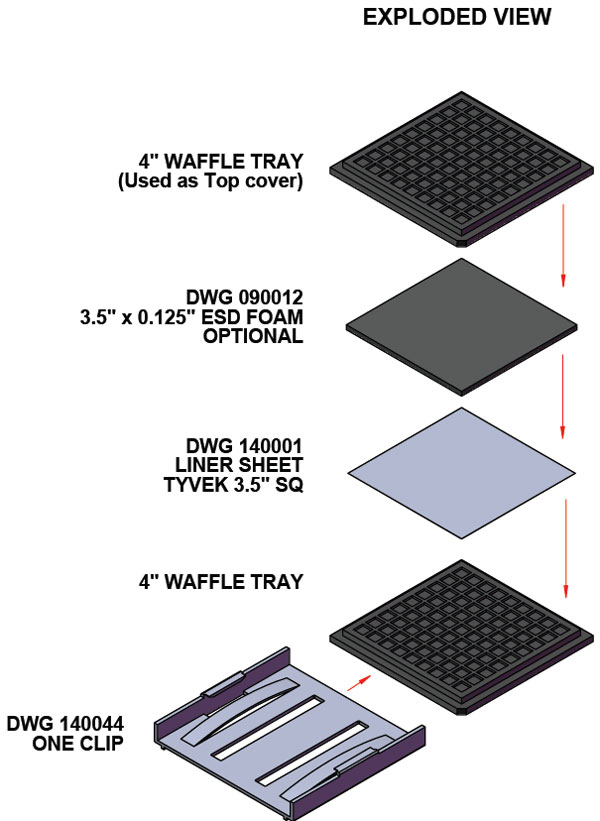

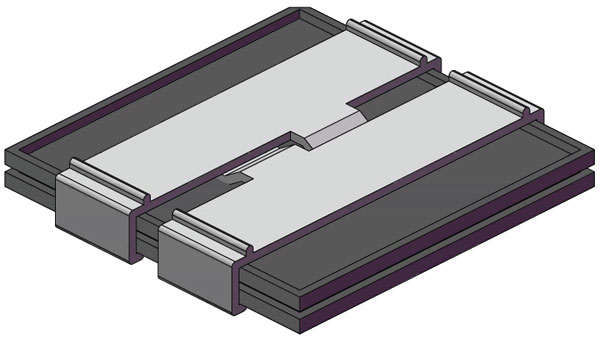

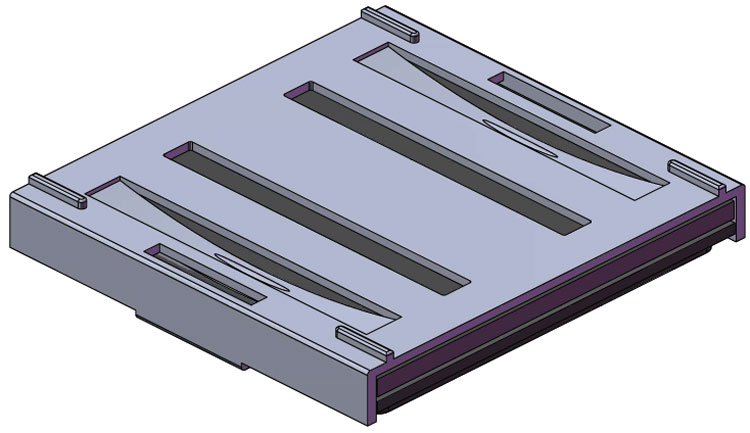

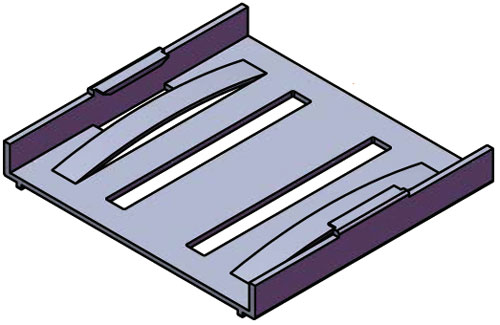

| Clip | Special Holds 1-Tray and 1-Tray Order 1x clip Per Assembly. |
 Click for Assembly |
Requires only 1 clip per stack Dual Tray + Tray Do not use for Tray + Cover Black Color WP4-CLIP-TRAY-TRAY-X DP#140044 |

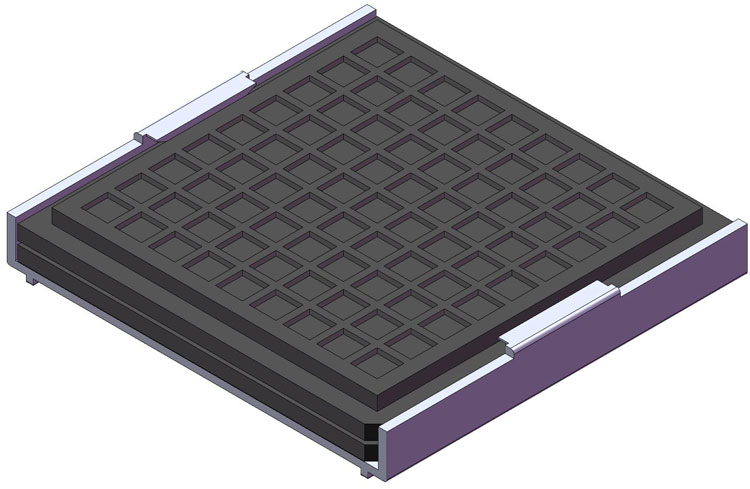

WP4-CLIP1X-Assembly Model TOP • BOTTOM |
|||

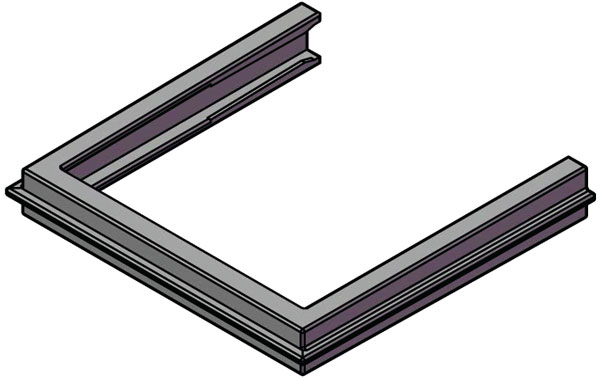

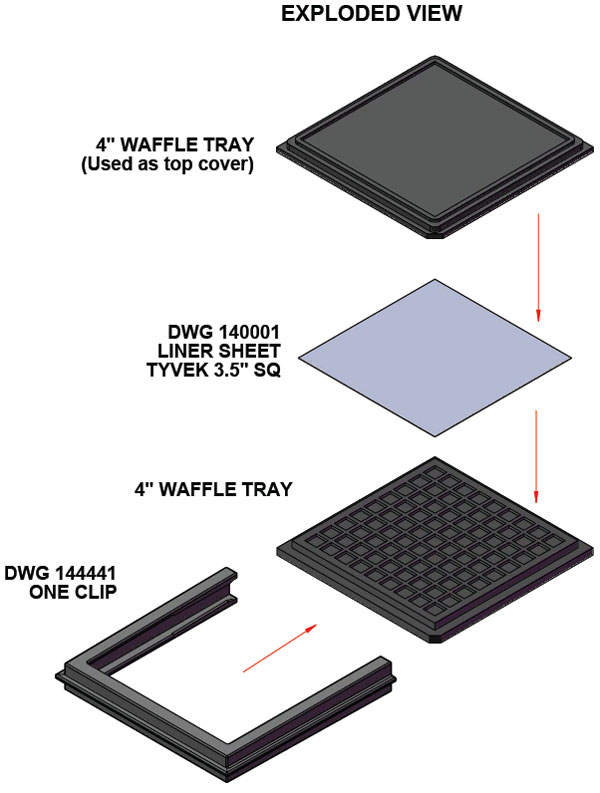

| Clip | Special Holds 1-tray and 1-cover Buy 1 clip Per Assembly. |
 |
WP4-U-CLIP Black-polypropylene DP#144441 Order 1 clips per stack |

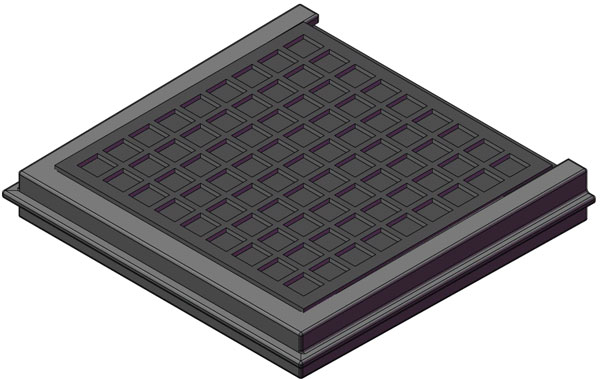

WP4-U-CLIP Model Assembly • Exploded View |
|||

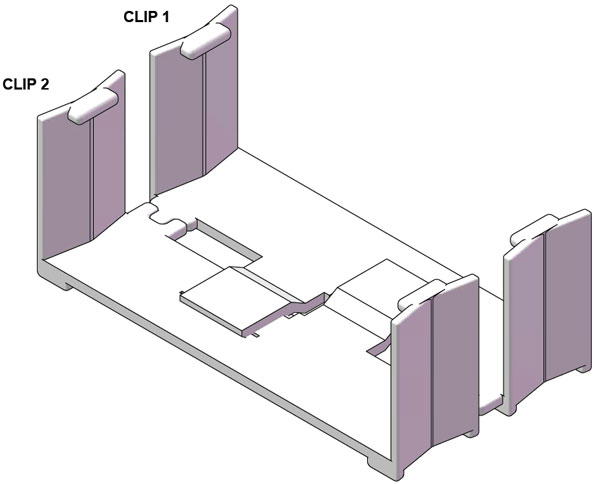

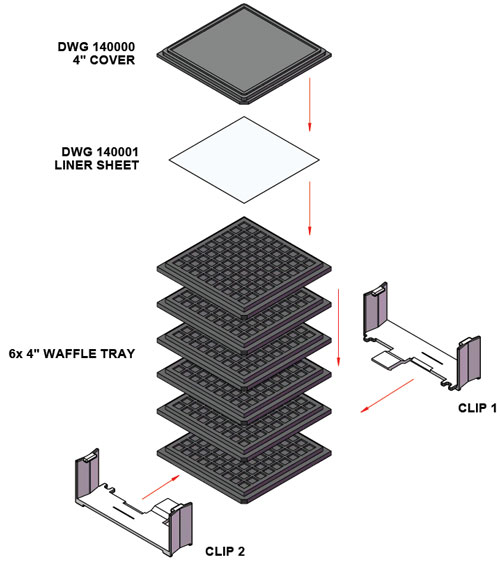

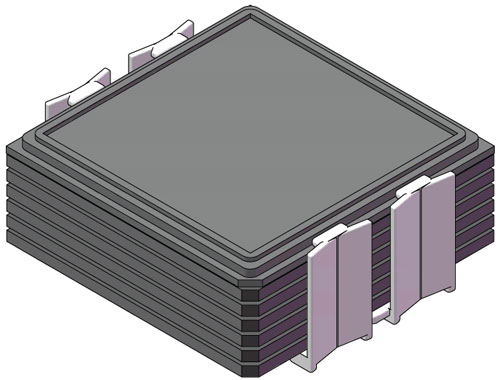

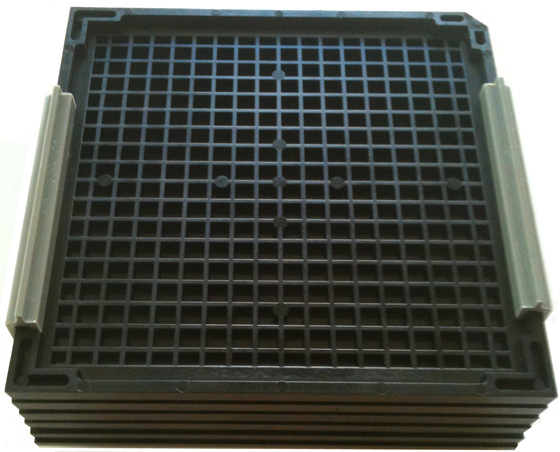

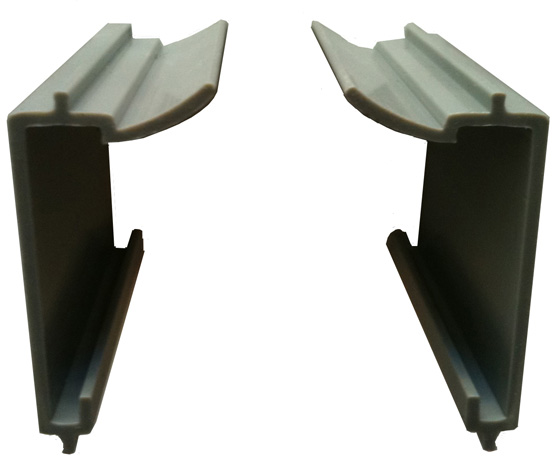

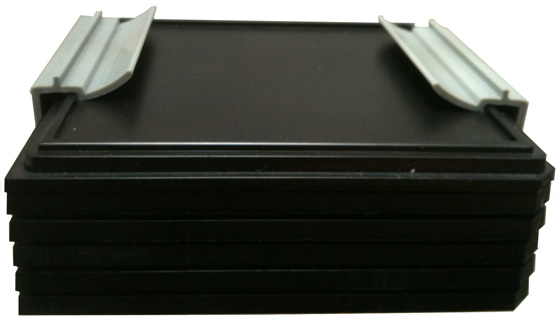

| Clip | Holds 6-trays and 1-cover Buy 2 clips per stack. |
 |
WP4-CLIP6-N Natural-polypropylene DP#153771 Buy 2 per stack ---- WP4-CLIP6-B Black-polypropylene DP#046102 Order 2 clips per stack |
WP4-CLIP6 Model Assembly • Exploded View |
|||

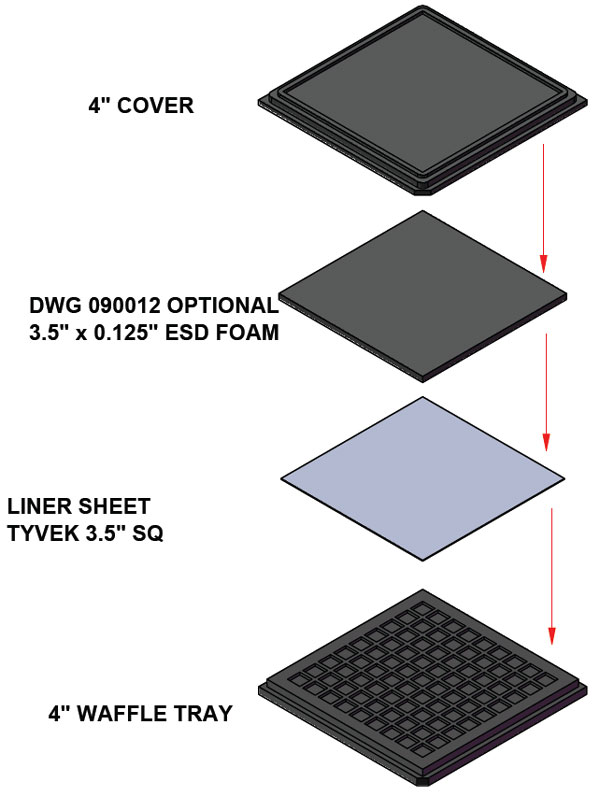

| Tyvek® Paper Insert Place between die and cover |
Anti-Static 1011 ~ 1012 Ohm per Square Box of 500 Sheets |
 |
White WP4-INSERT-TYVEK DP#140500-Box 500 Sheets DP#140001-Single Sheets |
WP4-INSERT-TYVEK Model |
|||

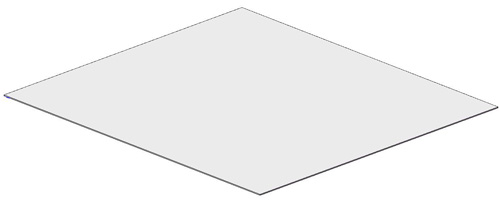

| Polyethylene Insert Place between die and cover |
Dissipative 106 ~ 1010 Ohm per Square Box of 500 Sheets |
 |
White (Opaque) WP4-INSERT-POLY DP#140715-Box 500 Sheets DP#440715-Single Sheets |
WP4-INSERT-POLY Model |
|||
| Conductive Foam Filler Place between die Tyvek & cover |
Resistivity: 103 ~ 106 Ohm per Square |
 |
Black WP4-FOAM-SOFT-3.5A DP#090012-Single Sheets |
WP4-SOFT-FOAM Model |
|||
| Label Pre-Printed Self Adhesive |
3-inch Square 76mm Sq Roll of 500 labels |
 |
WP4-LABEL-PP DP#016021-Roll 500 Labels DP#167622-Single Labels |
||||

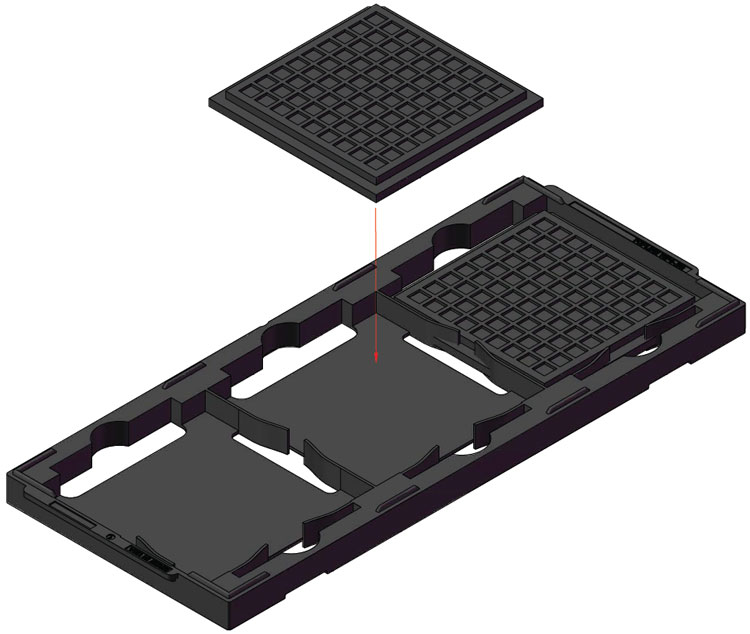

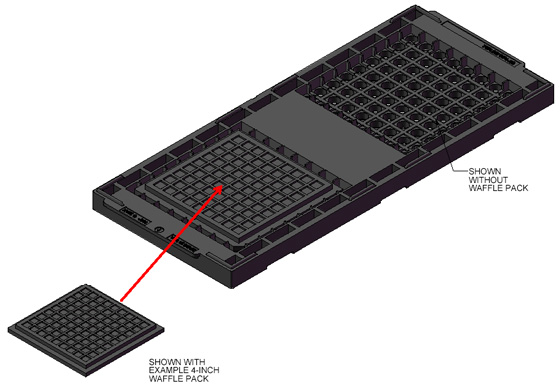

| JEDEC Outine Fixture |
Holds 3x 4-inch Waffle Packs Rated 180°C ESD Safe |
 |
WP4-JIGTRAY-E DWG# 780440 |
WP4-JIGTRAY-E Model |
|||
| Tray Part Numbering System | |||||
| WP | 4 | - | 12.5 x 14.3 x 1.2 | B | |
| Series | Tray Size | - | Pocket Dimension | Material | |
| Waffle Pack | 4-inch SQ (100mm SQ) |
- | width x length x depth Millimeters |
B = Black (standard) N=Natural |
|
| |||||
| Accessory Part Numbering System | |||||
| WP | 4 | - | Accessory | Option | |
| Series | Tray Size | - | Description | Material | |
| Waffle Pack | 4-inch SQ (100mm SQ) |
- |
COVER = Lid CLIP1=Single clip holds 1 tray + 1 cover CLIP2=Pair of clips holds 1 tray + 1 cover CLIP5=Pair of clips holds 5 trays + 1 cover INSERT-TYVEK=White LABEL = 3" Square ID Tag Roll of 500 labels |
Blank = Black (Opaque) -A = Amber (See Thru) -N = Natural |
|
| |||||
