QFP, LQFP, TQFP Tray
JEDEC Matrix IC Trays

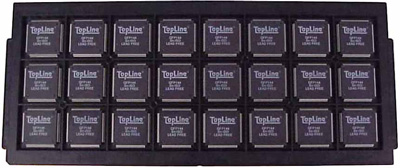

QFP, LQFP and TQFP IC Matrix trays.
Conforms to JEDEC standards.
Small Quantity Orders Welcome.

Dimensions/Coordinates • Full Tray Catalog PDF • About JEDEC Trays • Custom Tray

BGA Tray • QFN Tray • TSOP Tray • SOIC Tray • PLCC Tray • LGA Tray
Color Tray Clip • Universal Tray Covers • 2" Waffle Pack • 4" Waffle Pack • All Trays

Body Size

Body
Thickness

Quantity
Pockets
Per Tray

Matrix
Row-Column

JEDEC
Reference

Order TopLine
Tray Part Number

QFP (MQFP) Tray

10 x 10mm

2.0mm

6 x 16

CS-004AA

QTRAY10mm-6x16

14 x 14mm

2.0~2.7mm

6 x 14

CS-004AB

QTRAY14mm-6x14

14 x 20mm

2.7mm

6 x 11

CS-004AC

QTRAY14x20mm-6x11

28 x 28mm

3.6mm

3 x 8

CS-004AD

QTRAY28mm-3x8

32 x 32mm

3.8mm

3 x 8

CS-004AE

QTRAY32mm-3x8

40 x 40mm

3.8mm

3 x 4

CS-004AF

QTRAY40mm-3x4

LQFP 1.4mm Thickness Tray

5 x 5mm

1.4mm

360

12 x 30

CS-007AA

LQTRAY5mm-12x30

7 x 7mm

1.4mm

250

10 x 25

CS-007AB

LQTRAY7mm-10x25

10 x 10mm

1.4mm

160

8 x 20

CS-007AC

LQTRAY10mm-8x20

12 x 12mm

1.4mm

119

7 x 17

CS-007AJ

LQTRAY12mm-7x17

14 x 14mm

1.4mm

6 x 15

CS-007AE

LQTRAY14mm-6x15

14 x 20mm

1.4mm

6 x 12

CS-007AF

LQTRAY14x20mm-6x12

20 x 20mm

1.4mm

5 x 12

CS-007AG

LQTRAY20mm-5x12

24 x 24mm

1.4mm

4 x 10

CS-007AH

LQTRAY24mm-4x10

28 x 28mm

1.4mm

4 x 9

CS-007AJ

LQTRAY28mm-4x9

TQFP 1.0mm Thickness Tray

5 x 5mm

1.0mm

360

12 x 30

CS-007AA

TQTRAY5mm-12x30

7 x 7mm

1.0mm

250

10 x 25

CS-007AB

TQTRAY7mm-10x25

10 x 10mm

1.0mm

160

8 x 20

CS-007AC

TQTRAY10mm-8x20

12 x 12mm

1.0mm

119

7 x 17

CS-007AJ

TQTRAY12mm-7x17

14 x 14mm

1.0mm

6 x 15

CS-007AE

TQTRAY14mm-6x15

14 x 20mm

1.0mm

6 x 12

CS-007AF

TQTRAY14x20mm-6x12

20 x 20mm

1.0mm

5 x 12

CS-007AG

TQTRAY20mm-5x12

BQFP (PQFP) Bumper QFP Tray

100 Pin

3.6mm

5 x 11

CS-002AC

BQTRAY100-5x11

132 Pin

3.6mm

4 x 9

CS-002AD

BQTRAY132-4x9

Optional Features:
Specify max temperature: 125°C, 140°C, 150°C, 180°C when ordering.
Specify height of TQFP component when ordering.
Tray color: Black > 125°C Blue = 50°C~75°C
Colored tray clip for sorting, testing and aging identification
