Column Attach Service CCGA
Quick View Columns

Catalog   •   More Columns   •   FEA   •   DCR   •   CCGA Packages   •   Library   •   Video   •   Materials   •   Attach Service   •   Tray   •   Attachment Tools   •   Flip-Pack®

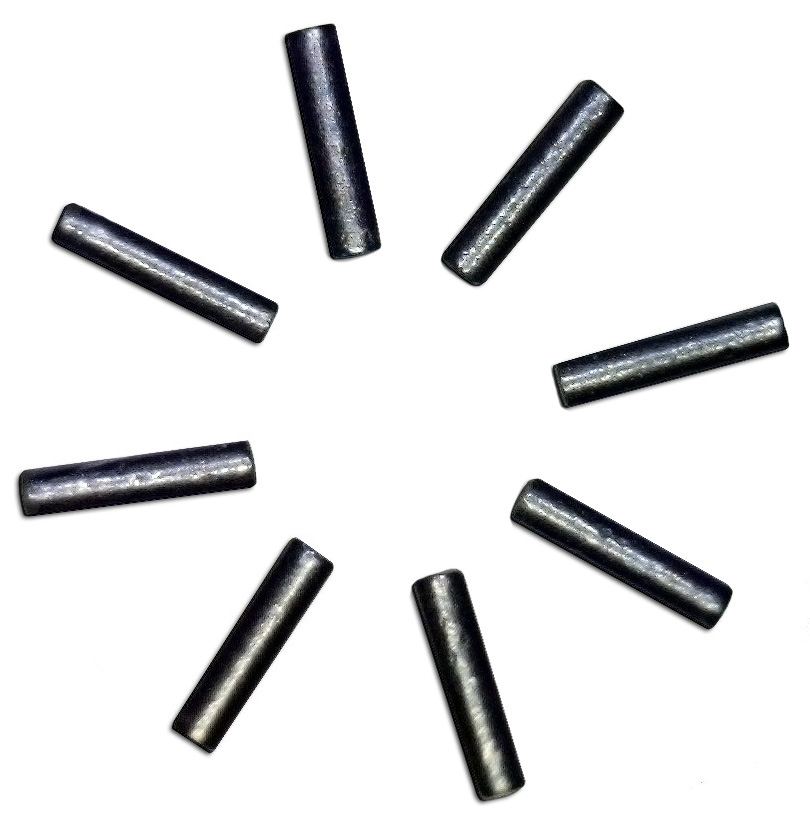

Fig.1
Pb90/Sn10

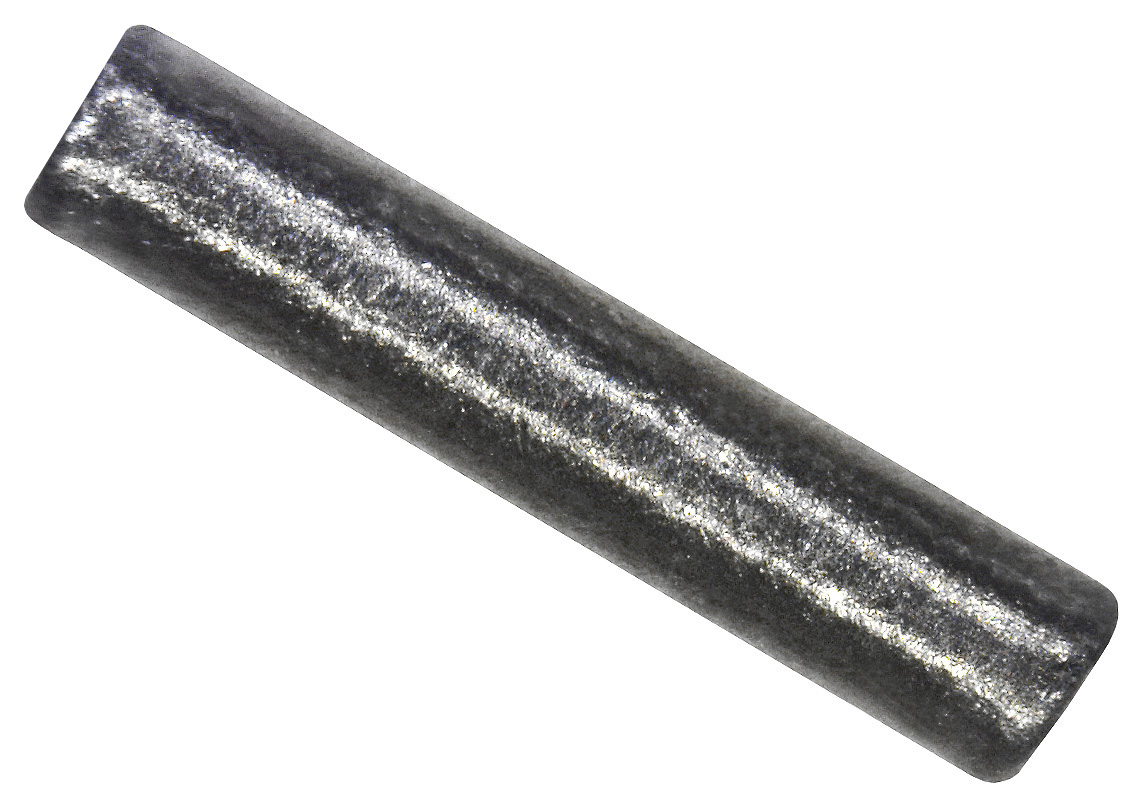

Plain Column
Click Photo		 Fig.2
Pb80/Sn20

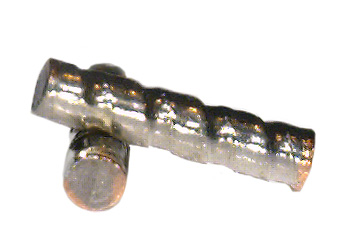

Column with Cu wrap
Click Photo 1 • 2 • 3		 Fig.3
NASA Invented

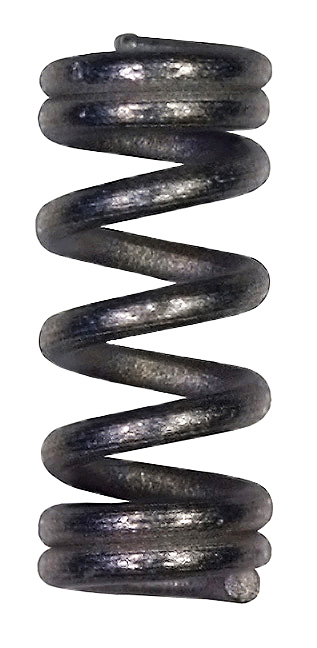

Micro Coil Spring
Click for details		 Fig.4

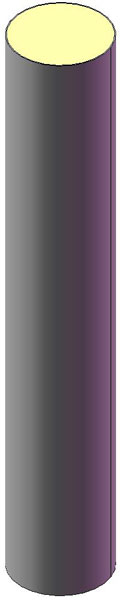

Copper Column
Click for details		 Fig.5
Cu Braided Column
U.S. Patent 10,477,698
 Cryogenic Columns

MIL-STD-883L 3.3.6   •   Pull Stength: MIL-STD-883K TM2038   •    Reflow Temperature  •    Cryo Questionnaire   •   Column Questionnaire
TopLine offers a wide range solder columns to meet your needs. Typical solder core materials include Pb90/Sn10 , Pb80/Sn20, Indium and Lead Free. We offer copper ribbon and braided copper around the columns to increase reliability. After winding, the column is coated with solder. We can provide columns with a variety of diameters and lengths. A choice of different solder cores and copper thicknesses are available. Solder core materials from 0.20~0.89mm (8~35mils) are readily available. We can provide custom size columns to meet your project requirements. The tables below are just a small example of the column sizes we offer. Contact TopLine to discuss your specific needs.

Column Size Diameter Quick View
Column
Type		 Lead Free
Leaded		 Core
Alloy		 Exterior
Alloy		 Operating
Temp Range		 0.20mm
8 mil		 0.25mm
10 mil		 0.30mm
12 mil		 0.35mm
14 mil		 0.40mm
16 mil		 0.45mm
18 mil		 0.50mm
20 mil		 Part Nbr
Series
Plain Leaded Pb90 Sn10 - -55°C to +125°C CG9010U
Wrap Leaded Pb80 Sn20 Cu
Ribbon		 -55°C to +125°C   CG8020C
Pb90 Sn10 Cu
Ribbon		 -55°C to +125°C   CG9010C
Braided Leaded Pb80 Sn20 C172 -55°C to +125°C   BC8020B
Pb90 Sn10 C172 -180°C to +150°C   BC9010B
HMP C172 -180°C to +204°C   CG935M
In70/Pb30 C172 -273°C to +150°C   BC70N
Braided RoHS
Lead Free		 In90/Ag10 C172 -273°C to +120°C   BC90N
In97/Ag3 C172 -273°C to +120°C   BC97T
In100 C172 -273°C to +120°C   BC100T
Sn90/Sb10 C172 -55°C to +125°C   BC10H
Micro-Coil
Spring		 Leaded C172 SnPb -55°C to +125°C           MCS172P
RoHS
Lead Free		 C172 Ni Au -55°C to +125°C           MCS172G
Copper
Piller		 RoHS
Lead Free		 CU110
EFTEC-2		 Ni Au -55°C to +125°C         CU110G
CU194
EFTEC-194		 Ni Au -55°C to +125°C         CU194G


- -
Column Length Before Trimming Quick View
Column
Type		 Length
Before Trim		 Length
After Trim		 0.20mm
8 mil		 0.25mm
10 mil		 0.30mm
12 mil		 0.35mm
14 mil		 0.40mm
16 mil		 0.45mm
18 mil		 0.50mm
20 mil		 Part Nbr
Series
Plain 0.80mm 0.63mm CG9010U
0.90mm 0.75mm
1.0mm 0.80mm
1.27mm 1.00mm
1.52mm 1.27mm
1.60mm 1.40mm
1.70mm 1.50mm
1.80mm 1.60mm
1.9mm 1.70mm
2.21mm 2.00mm
2.31mm 2.21mm
2.36mm 2.21mm
2.41mm 2.21mm
2.54mm 2.21mm

Column
Type		 Length
Before Trim		 Length
After Trim		 0.20mm
8 mil		 0.25mm
10 mil		 0.30mm
12 mil		 0.35mm
14 mil		 0.40mm
16 mil		 0.45mm
18 mil		 0.50mm
20 mil		 Part Nbr
Series
Copper Wrap
and
Braided		 0.80mm 0.63mm   CG8020C
CG9010C
BC8020B
BC9010B
BC935M
0.90mm 0.75mm
1.0mm 0.80mm
1.27mm 1.00mm
1.52mm 1.27mm
1.60mm 1.40mm
1.70mm 1.50mm
1.80mm 1.60mm
1.90mm 1.70mm
2.21mm 2.00mm
2.31mm 2.21mm
2.36mm 2.21mm
2.41mm 2.21mm
2.54mm 2.21mm

Column
Type		 Length
Before Trim		 Length
No Trim		 0.20mm
8 mil		 0.25mm
10 mil		 0.30mm
12 mil		 0.35mm
14 mil		 0.40mm
16 mil		 0.45mm
18 mil		 0.50mm
20 mil		 Part Nbr
Series
Micro-coil
Spring		 1.0mm 1.0mm             MCS172G
MCS172P
1.27mm 1.27mm

Column
Type		 Length
Before Trim		 Length
No Trim		 0.20mm
8 mil		 0.25mm
10 mil		 0.30mm
12 mil		 0.35mm
14 mil		 0.40mm
16 mil		 0.45mm
18 mil		 0.50mm
20 mil		 Part Nbr
Series
Copper Pillar
Column		 1.0mm 1.0mm           CU110G
CU194G
1.27mm 1.27mm
1.5mm 1.5mm
1.6mm 1.6mm


Reference Information
Item Topic Description Link
1 FAE Animated Finite Element Analysis.
Strain on different column types under CTE mismatch.		 Click
2 Design Rule Pad Diameter,
Corresponding column diameter.		 Click


Quick View Outlines
Fig. 1   Fig. 2   Fig. 3

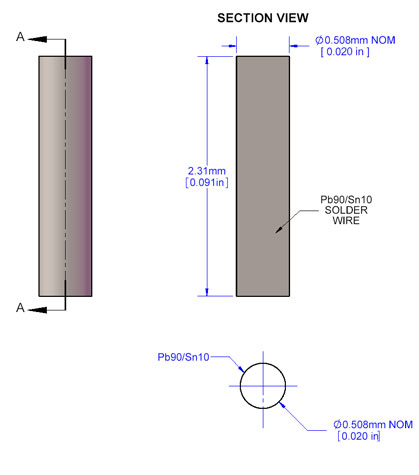

Plain Solder Column

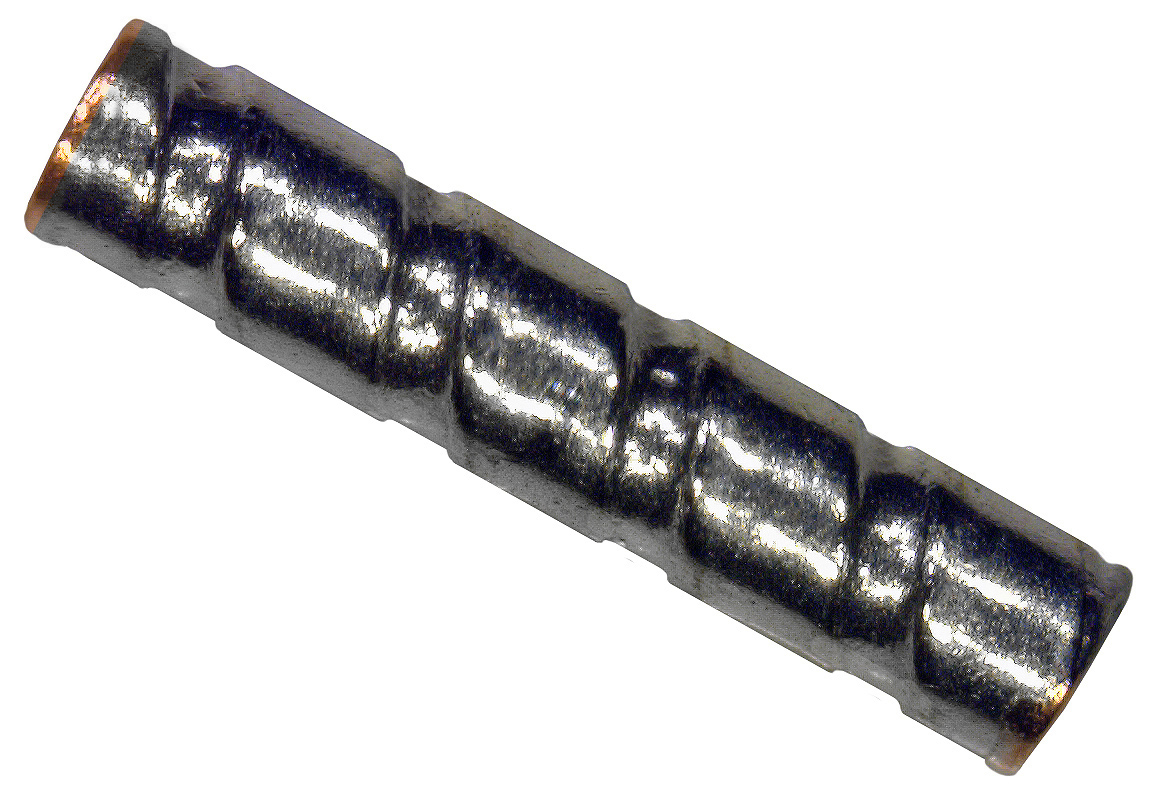

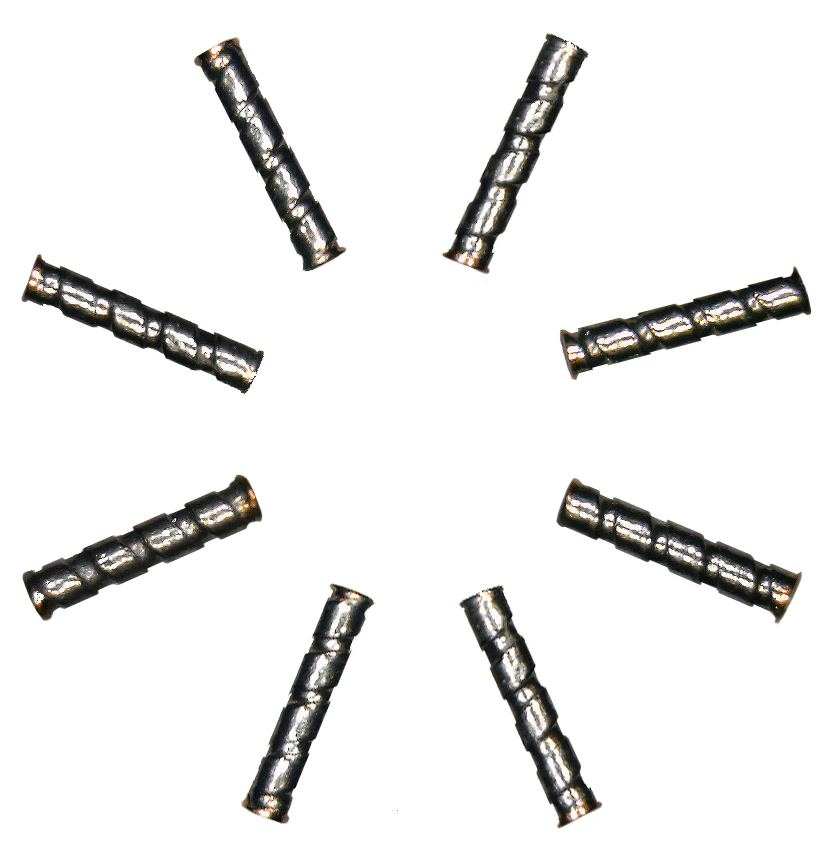

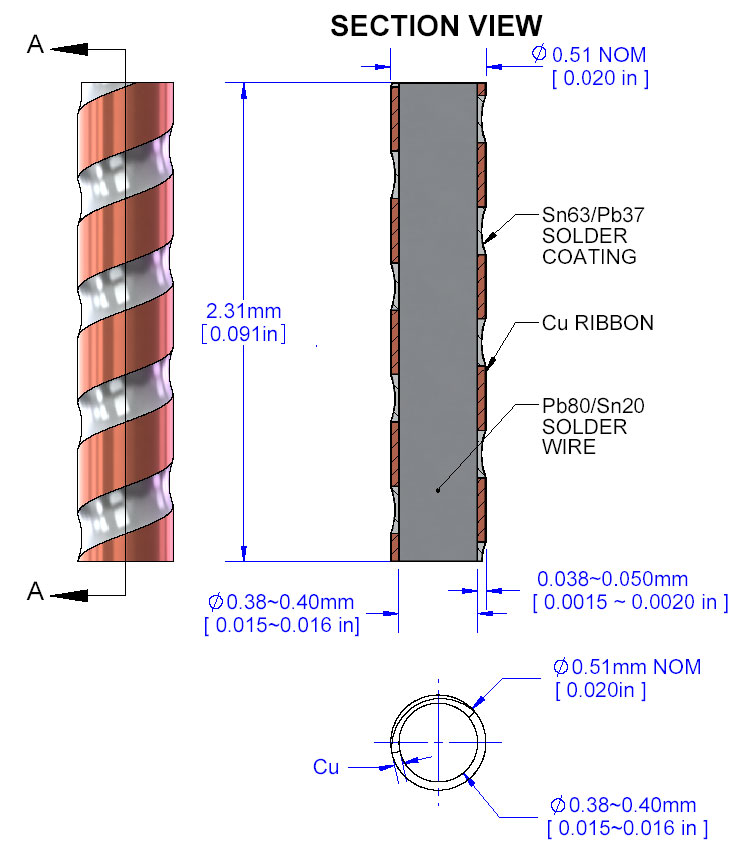

Click Photo		   Cppper Wrap Solder Column
Click Photo to see finished column
Click Photo		   Braided Solder Column
Click Photo to see finished column
Click Photo



Column Part Number System

    CG         8020         C         20         X         87         Option
Column Type Core Alloy Coating Ø Diameter
Mils		 Packaging Length
Mils		 Option
CG = Solder Column

MCS = Micro Coil Spring

BC = Braided Column

CC = Copper Core Column

CU = Copper Pillar Column

 Copper Wrap:
8020 = Pb80/Sn20
8515 = Pb85/Sn15
9010 = Pb90/Sn10


Braided Columns:
U.S. Patent 10,477,698
CN Patent 111,822,899

Tin-Lead SnPb
Braided Columns:
8020 = Pb80/Sn20
9010 = Pb90/Sn10
935 = Pb93.5/Sn5/Ag1.5


Lead Free (RoHS)
Braided Columns:
5 = Sn95/Sb5
8 = Sn91.5/Sb8.5
10 = Sn90/Sb10


Cryogenic Applications
Space & Quantum Computer
Indium Alloy
Braided Columns:
100 = Indium (In100)
97 = Indium/Silver (In97/Ag3)
90 = Indium/Silver (In90/Ag10)
70 = Indium/Lead (In70/Pb30)



Metal Core:
4 = Au 99.99% (Gold)
101 = Cu OFHC (CDA101)
110 = Cu EFTEC-3 Soft (C14410)
194 = Cu EFTEC-194 Hard
Cu97.4/Fe2.4/Zn.13 (C194)



Micro-Coil Spring:
172 = BeCu (C172)
Cu98% Be1.8% Co+Ni0.2%





 Column Cu Wrap(CG)
C = Sn63/Pb37 (Tin-Lead)


Plain Column(CG)
U = Unplated - Bare


Micro-coil Spring (MCS)
P = Sn60/Pb40
G = Ni/Au (RoHS)


Cu Pillar/Column (CU)
G = NiAu (RoHS)
U = Unplated (RoHS)
P = Sn60/Pb40

 Copper Core Column (CC)
A = Pb90/Sn10 Ribbon
Coat Sn63/Pb37
K = Sn90/Sb10 Ribbon (RoHS)
Coat Sn90/Ag3.5/Bi0.5/In6.0


Braided Column (BC)
Braided Tin-Lead
B = Sn63/Pb37 16*Cu
L = Sn63/Pb37 8*Cu
M = Pb80/Sn20 16*Cu


Braided Lead-Free (RoHS)
H = SAC+ 16*Cu
J = SAC+ 8*Cu

Braided Cryogenic
N = In97/Ag3
Q = In100
T = In52/Sn48




Solder Column
6 = 0.15mm
7 = 0.18mm
8 = 0.20mm
10 = 0.25mm
11 = 0.28mm
12 = 0.30mm
13 = 0.33mm
14 = 0.35mm
15 = 0.38mm
16 = 0.40mm
20 = 0.50mm
22 = 0.56mm
35 = 0.89mm


Micro Coil Spring
10 = 0.25mm
12 = 0.30mm
14 = 0.35mm
16 = 0.40mm
18 = 0.45mm
20 = 0.50mm


Copper Column
6 = 0.15mm
7 = 0.18mm
8 = 0.20mm
9 = 0.23mm
10 = 0.25mm
12 = 0.30mm
14 = 0.35mm
15 = 0.38mm
16 = 0.40mm


 Standard:
X = Jar


Special:
J = JEDEC Tray
T = 4" Tray
W = 2" Tray
E = Tape & Reel 		Solder Column
25 = 0.63mm
31 = 0.80mm
40 = 1.00mm
50 = 1.27mm
63 = 1.60mm
70 = 1.80mm
75 = 1.91mm
87 = 2.21mm
91 = 2.31mm
93 = 2.36mm
95 = 2.41mm
100 = 2.54mm
138 = 3.51mm
150 = 3.81mm


Micro Coil Spring
25 = 0.65mm
30 = 0.75mm
33 = 0.85mm
35 = 0.90mm
40 = 1.00mm
50 = 1.27mm


Copper Columns
20 = 0.50mm
25 = 0.63mm
30 = 0.75mm
31 = 0.80mm
40 = 1.00mm
50 = 1.27mm
63 = 1.60mm
73 = 1.85mm
87 = 2.21mm

Other Length Available

 Blank=Standard

A to Z = Custom


Braided Columns
C172 Soft
A= 1.0mil
B= 1.5mil
C= 2.0mil

C172 Hard
D= 1.0mil
E= 1.5mil
F= 2.0mil

Cu-PCC
G= 1.5mil
H= 2.0mil

Au Gold
J= 1.5mil
K= 2.0mil

Nb Niobium
M= 1.0mil
N= 1.5mil
R= 2.0mil


Column DP# Order Number

    8         20         87         0
Column Type Ø Diameter
Mils		 Length
Mils		 Package
Quantity
Pb80/Sn20 Solder Column (CG):
8 = Cu Wrap Ribbon (C)


 Pb90/Sn10 Solder Column (CG):
9 = Plain Column (U)
0 = Cu Wrap Ribbon (C)


Braided Column (BC) 16X:
U.S. Patent 10,477,698
CN Patent 111,822,899
4 = Cu Braid + Pb80/Sn20 Solder (B)
5 = Cu Braid + Lead Free Solder (H)
7 = Cu Braid + Pb90/Sn10 Solder (B)



 Micro-Coil Spring (MCS):
1 =   Be-Cu C17200  Plated Sn60/Pb40 (P)
2 =   Be-Cu C17200  Plated Ni/Au Gold (G) RoHS



Copper Core Columns (CC):
3 = Cu Core Columns
 		Code • Diameter • Pitch
04 = Ø0.10mm (P 0.4mm)
05 = Ø0.13mm (P 0.5mm)
06 = Ø0.15mm (P 0.5mm)
08 = Ø0.20mm (P 0.5mm)
09 = Ø0.23mm (P 0.5mm)
10 = Ø0.25mm (P 0.65mm)
12 = Ø0.30mm (P 0.8mm)
13 = Ø0.33mm (P 0.8mm)
14 = Ø0.35mm (P 0.8mm)
15 = Ø0.38mm (P 1.0mm)
16 = Ø0.40mm (P 1.0mm)
17 = Ø0.43mm (P 1.0mm)
18 = Ø0.45mm (P 1.0mm)
20 = Ø0.50mm (P 1.0mm)
22 = Ø0.56mm (P 1.27mm)
30 = Ø0.75mm (P 1.27mm)
35 = Ø0.89mm (P ≥1.5mm)

 Code   •  Length
20 = 0.50mm
25 = 0.63mm
30 = 0.75mm
31 = 0.80mm
35 = 0.90mm
40 = 1.00mm
50 = 1.27mm
63 = 1.60mm
70 = 1.80mm
73 = 1.85mm
75 = 1.91mm
87 = 2.21mm
91 = 2.31mm
93 = 2.36mm
99 = 2.54mm
95 = 2.41mm
98 = 2.80mm
94 = 3.05mm
92 = 3.51mm
96 = 3.70mm
97 = 3.81mm


Other Lengths Available

WIP
00 = 8"
12 = 12"
14 = 14"
 Code   •  Qty
0 = Jar 100pcs
1 = Jar 1Kpcs
2 = Jar 5Kpcs
3 = Jar 10Kpcs
7 = Reel 2500pcs
8 = Tray
9 = Bulk





WIP
0 = PLAIN
1 = WRAP
8 = DIP
9 = WAVE


Column Drawing Number

    80         20         87
Column Type and Plating Ø Diameter
Mils		 Length
Mils
TIN-LEAD
COPPER WRAP COLUMN (CG)
80 = Pb80/Sn20 (CG8020C)
85 = Pb85/Sn15 (CG8515C)
91 = Pb90/Sn10 (CG9010C)


TIN-LEAD
Plain Solder Column (CG)
90 = Pb90/Sn10 Unplated (CG9010U)



Micro Coil Spring (MCS)
17 = BeCu + Sn60/Pb40 (MCS172P) Tin-Lead
19 = BeCu + Ni/Au RoHS (MCS172G) Lead Free


Cu Columns:
60 = C14410 (EFTEC-3) + NiAu (CU110G)
62 = C101 OFHC + NiAu (CU101G)
64 = C101 OFHC Unplated Bare (CU101U)
65 = C194 (EFTEC-194) + NiAu (CU194G)
66 = C101 OFHC + SnPb(CU101P)



Copper Core Column (CC)
U.S. Patent 10,937,752
CN Patent 114055006 B


Copper Core Solder Column (CC)
Tin-Lead
34 = Cu Core + Pb90/Sn10 (CC9010A)
36 = Cu Core + Pb90/Sn10 + Braid (CC9010B)

Lead Free (RoHS):
33 = Cu Core + Sn90Sb10 (CC10K)
35 = Cu Core + Sn90Sb10 + Braid (CC10H)



Copper Braided Column (BC)
U.S. Patent 10,477,698
CN Patent 111,822,899


Braided Column Lead Free (RoHS) BC
94 = Sn90/Sb10 - 8*Cu (BC10J)
95 = Sn90/Sb10 - 16*Cu (BC10H)
96 = Sn95/Sb5 - 8*Cu (BC5J)
97 = Sn95/Sb5 - 16*Cu (BC5H)
98 = Sn91.5/Sb8.5 - 16*Cu (BC8H)


Braided Column Tin-Lead (BC)
70 = In70/Pb30 - 16*Cu (BC70N)
71 = Pb90/Sn10 - 16*Cu (BC9010B)
72 = Pb90/Sn10 32*Cu (BC9010D)
73 = Pb90/Sn10 - 8*Cu (BC9010L)
74 = Pb80/Sn20 - 8*Cu (BC8020L)
75 = Pb80/Sn20 - 16*Cu (BC8020B)
76 = Pb93.5/Sn5/Ag1.5 HMP - 16*Cu (BC935M)
78 = TBA
79 = TBA


Cryogenic Braided Column (BC)
10 = In100 16*Cu (BC100T)
11 = In90/Ag10 16*Cu (BC90N)
13 = In97/Ag3 16*Cu (BC97T)
70 = In70/Pb30 - 16*Cu (BC70N)


Application Specific (ASIC)
89 = Customer Specific Assigned number 		  Diameter
04 = Ø0.10mm (P 0.4mm)
05 = Ø0.13mm (P 0.5mm)
06 = Ø0.15mm (P 0.5mm)
08 = Ø0.20mm (P 0.5mm)
09 = Ø0.23mm (P 0.5mm)
10 = Ø0.25mm (P 0.65mm)
12 = Ø0.30mm (P 0.8mm)
13 = Ø0.33mm (P 0.8mm)
14 = Ø0.35mm (P 0.8mm)
15 = Ø0.38mm (P 0.8mm)
16 = Ø0.40mm (P 1.0mm)
17 = Ø0.43mm (P 1.0mm)
18 = Ø0.45mm (P 1.0mm)
20 = Ø0.50mm (P 1.0mm)
22 = Ø0.56mm (P 1.27mm)
27 = Ø0.70mm (P 1.27mm)
30 = Ø0.75mm (P 1.27mm)
35 = Ø0.89mm (P ≥1.5mm) 		  Length
20 = 0.50mm
25 = 0.63mm
30 = 0.75mm
31 = 0.80mm
35 = 0.90mm
40 = 1.00mm
50 = 1.27mm
63 = 1.60mm
70 = 1.80mm
73 = 1.85mm
75 = 1.91mm
87 = 2.21mm
91 = 2.31mm
93 = 2.36mm
95 = 2.41mm
99 = 2.54mm
98 = 2.80mm
94 = 3.05mm
92 = 3.51mm
96 = 3.70mm
97 = 3.81mm

Other Lengths Available


ECCN: EAR99 Export Administration Regulations (EAR)
HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
HS Code: 8311.30.3000 Lead-Tin Solders
ITAR: Solder columns and dummy daisy chain CCGA are not restricted.





WARNING - THIS PRODUCT CONTAINS LEAD
Ingestion may cause lead poisoning. Do not breathe dust or fumes. Use NIOSH approved respiratory protection when necessary. Use only with adequate ventillation. Wash hands before eating, drinking, and smoking. Keep out of reach of children. For industrial and commercial use only. Do not re-use container. Not for use in potable water systems. See material safety data sheet for further information.

California Regulatory Information
California State Proposition 65
WARNING! This product contains lead, known to the state of California to cause cancer, birth defects and other reproductive harm. (California Health & Safety Code 25249.5 et seq.)

Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.




TopLine Corporation
95 Highway 22 W
Milledgeville, GA 31061, USA
Toll Free USA/Canada (800) 776-9888
International: 1-478-451-5000
Email: sales@topline.tv

 ©2024 TopLine. All Rights Reserved.

Home
