Column Attachment Tools for Solder Columns
About Tool-Kit:
TopLine manufactures a complete set of precision tools to attach Solder Columns and Micro-coil Springs to your specific CCGA column grid array package. Our tools hold cylindrical solder columns or micro-coil springs vertically at true 90° during the entire assembly process.

Use our tool-kit to columinize a fresh LGA or rework a damaged CCGA for full-use deployment. The tool-kit includes a benchtop graphite set and accessories such as a vacuum chuck, alignment template, insertion tool, extraction tool and solder paste printer for a professional job.

Simple column attachment process steps using new Flip-Pack®
Package Specifications:
  • Pins: 256
  • Pitch: 1.0mm
  • Size X/Y: 17 x 17mm
  • Size Z: Substrate 1.0mm / With Lid ~2.8mm
  • Substrate: Ceramic
  • Column Length: 2.21mm After Planarizing
  • Column Diameter: Ø0.51mm
  • Maker: Custom
  • Drawings:  CLGA256  •  CCGA256

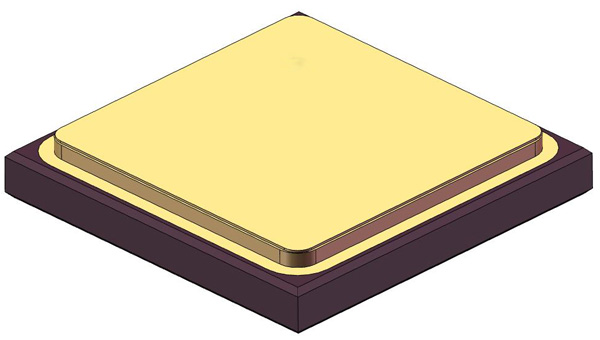

  • Top

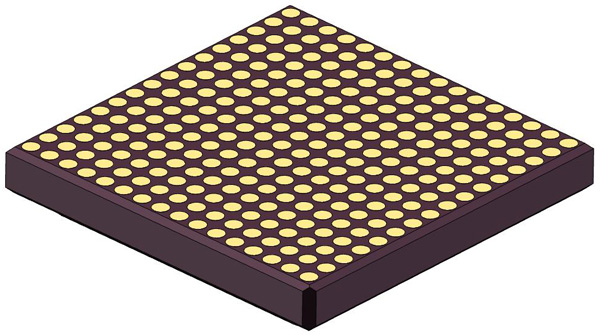

    Bottom
    C7 Series TOOL-KIT
    REQUIRED ITEMS
    Tool DWG Model Description Image
    GRAPHITE SET 711680 C7-TOP-256-A Graphite structure with array of holes to match CCGA pads. Holds columns upright. Bottom side has downset to clear solder paste fillets. Top side has receptacle to accept optional Flip-Pack® U.S. Patents D808350 S.
    516210 C7-STAGE-256-A Adjustable X/Y stage holds and aligns LGA/CCGA substrate pads. Channels permit optional thermocouples to measure temperature at substrate during reflow. Vacuum center hole prevents substrate from lifting. Patent Pending.
    550000 C7-BASE Base has ultra-fine threaded adjustment to align the stage in X/Y directions. Includes 3 precision alignment pins. The C7-BASE sits on top of vacuum chuck to secure the substrate in the stage. Patent pending.
    TAMPING TOOL 411670 C7-TAMP-256-A Array of Titanium (Ti) pins gently pushes solder columns uniformly into solder paste on substrate.
    EXTRACTION TOOL 703244 C7-EXTRACT-256-A Precision dowel pins safely lifts CCGA substrate by 4-corners from the Graphite top plate after reflow.
    ALIGNMENT 211600 C7-ALIGN-256-A Essential tool for centering and accurate X/Y Theta alignment of LGA in graphite. Includes precision alignment template with aperture allowing annular ring vision of LGA pads while seated in graphite.
    PASTE STENCIL 611698
    8MIL Set
    C7-STENCIL-256-A Set of laser cut stainless steel stencils with a choice of apertures for optimizing solder paste volume. Micro-etched stencil surface with nano-coating assures clean solder paste deposits to LGA seated in Graphite Set.
    STENCIL PRINTER 700000 C7-PRINTER Simple to use manual stencil printer for applying solder paste while LGA sits in graphite. Adjustable spring back for clean solder paste deposits. Includes stainless steel stencils and metal doctor blade squeegee.
    PLANARIZING 700244 C7-PLANAR-256-A Securely holds and protects CCGA while planarizing Solder Columns using fine-grit silicon carbide lapping media and diamond polishing film of your selection. Includes precision machined brass plate and two step shims. Not required for Micro-coil springs.
    702244 C7-EJECT-256-A Simple to use tool to extract CCGA from Planarizing tool. Gently lifts substrate at 4-corners with precision dowel pins.

    Note 1: Consult with TopLine for recommended tools for your application.



    C7 Series Tools
    RECOMMENDED OPTIONAL ACCESSORIES
    Tool Series Model Description Image
    FLIP PACK® Filled:
    951160
    851160
    831160


    Empty:
    001160
    Filled with Columns:
    FP95B256E20x93A
    FP85B256E20x93A
    FP83C256E20x93A


    Empty:
    FP256A
    Flip-Pack® pre-loaded cassette with Columns or Springs arranged in the correct array for quick assembly. Deposits columns into graphite in one-minute. Optionally re-fillable by customer or by recycling to TopLine. U.S. Patent 9,629,259
    INSERT TOOL 700087 C7-INSERT-FP2-87 Provides easy loading of Flip-Pack® into Graphite
    TRAY BOX 931165 EC1-256E-2BB Protective Tray Box for safe transport and storage of single CCGA device with columns. ESD safe.





    Model Numbering System
        C7     -     TOOLSET     -     256     -     A
    Series   Description   Columns   Variations
    Attachment Tool
    Series   •   Description
    C7 = CCGA tool-set






      Tool Type
    NAMEDescription
    GRAPHITE
    STAGE
    BASE
    TAMP
    EXTRACT
    STENCIL
    PRINTER
    ALIGN
    PLANAR
      Columns
    CodeNbr. Pads
    256 = 256 pins

    Contact TopLine Other Pins




      SET
    CodeVersion
    A • Version A
    M • Micro-coil
    Other Version Available


    Drawing Number System

        7         1         16         50
    Series Pitch or Size Tool Number Version
    C7 Tool-set
    CodeItem Description
    2 = Alignment Tool
    3 = Interposer with Columns
    4 = Titanium Tamping Tool
    5 = Graphite X/Y Stage
    6 = STENCIL (Solder Paste)
    7 = Graphite Set & Accessories
    8 = Flip Pack
    GRAPHITE SET
    CodePitch
    1 = 1.0mm
    2 = 1.27mm
    4 = 0.4mm
    5 = 0.5mm
    6 = 0.65mm
    8 = 0.8mm
    9 = Special
    0 = Special




    GRAPHITE STAGE
    CodeX/Y Size
    29 = 29x29mm
    GRAPHITE SET
    CodeMatrix
    25 = 25x25











    Graphite STAGE
    Code • LGA (Z) Thick
    25 = 2.5mm
    GRAPHITE SET
    CodeØ Column DiameterVersion
    1# = Ø6 mil •   Ø0.15mm • Cu Wire
    2# = Ø8 mil •   Ø0.20mm • Cu Wire
    3# = Ø10 mil • Ø0.25mm • Cu Wire
    4# = Ø12 mil • Ø0.30mm • Column
    5# = Ø15 mil • Ø0.38mm • Column
    6# = Ø16 mil • Ø0.40mm • Spring
    7# = Ø20 mil • Ø0.50mm • Spring
    8# = Ø20 mil • Ø0.50mm • Column
    9# = Ø22 mil • Ø0.56mm • Column



    GRAPHITE STAGE
    CodeVersion
    0~9 = Rev A~J



    TITANIUM TAMPING TOOL
    CodeVersion
    #0~#9 = Rev A~J






    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.
