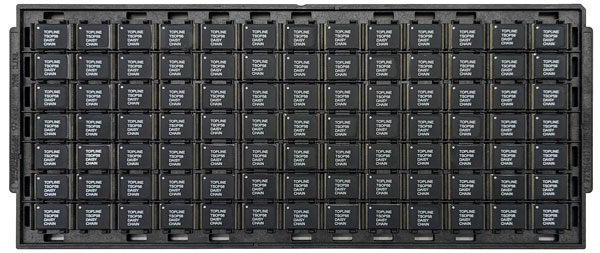

TSOP Tray
JEDEC Matrix IC Trays

TSOP IC Matrix Trays Conform to JEDEC Standards.
Small Quantity Orders Welcome

Dimensions/Coordinates • Full Tray Catalog PDF • About JEDEC Trays • Custom Tray

QFP Tray • BGA Tray • SOIC Tray • QFN Tray • PLCC Tray • LGA Tray
Color Tray Clip • Universal Tray Covers • 2" Waffle Pack • 4" Waffle Pack • All Trays

TSOP Type I Body + Leads Size	Quantity Pockets Per Tray	Matrix Row-Column	JEDEC Reference	Component Reference	Order TopLine Tray Part Number
8 x 13.4mm	234	13 x 18	CS-008BA	TSOP(I)28S TSOP(I)32S	TTRAY8x13.4mm-13x18
8 x 20mm	156	12 x 13	CS-008BD	TSOP(I)32L	TTRAY8x20mm-12x13
10 x 14mm	160	10 x 16	CS-008CA	TSOP(I)40S	TTRAY10x14mm-10x16
10 x 20mm	120	10 x 12	CS-008CD	TSOP(I)40L	TTRAY10x20mm-10x12
12 x 14mm	96	8 x 12	CS-008DA	TSOP(I)48S	TTRAY12x14mm-8x12
12 x 20mm	96	8 x 12	CS-008DD	TSOP(I)48L	TTRAY12x20mm-8x12
14 x 20mm	91	7 x 13	CS-008EC	TSOP(I)56L	TTRAY14x20mm-7x13
14 x 20mm	96	8 x 12	CS-008	TSOP(I)56L	TTRAY14x20mm-8x12

TSOP Type II Body Size	Quantity Pockets Per Tray	Matrix Row-Column	JEDEC Reference	Component Reference	Order TopLine Tray Part Number
10.16 x 18.41mm (0.4"x0.725")	135	9 x 15	CS-005AB	TSOP(II)44L	T2TRAY10X18.4mm-9x15
10.16 x 20.95mm (0.4"x0.825")	117	9 x 13	CS-005AC	TSOP(II)32L TSOP(II)50L	T2TRAY10X21mm-9x13
10.16 x 22.22mm (0.4"x0.875")	108	9 x 12	CS-005AF	TSOP(II)54L TSOP(II)66L TSOP(II)86L	T2TRAY10X22mm-9x12

Optional Features: Specify max temperature: 125°C, 140°C, 150°C, 180°C when ordering. Tray color is Black. Colored tray clip for sorting, testing and aging identification
