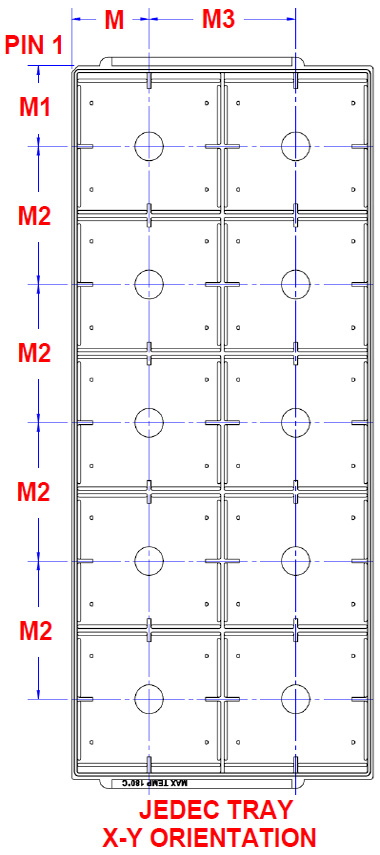

LGA & Module Tray JEDEC Matrix IC Trays |
![](images/blackbar.gif) |
|
|
|

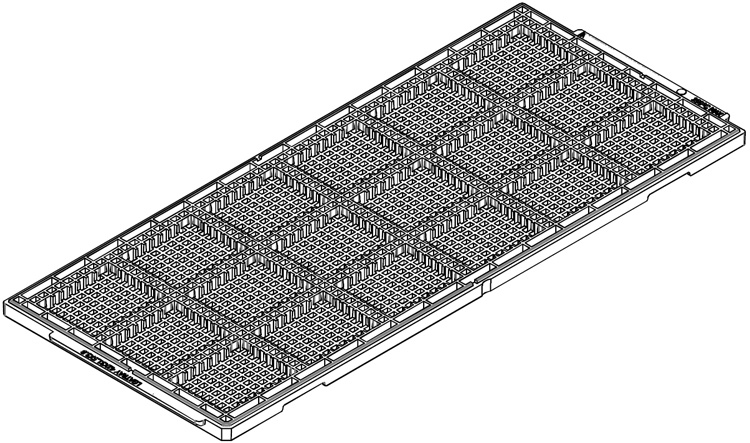

Partial List of LGA Trays.
Please provide your component outline drawing. We will validate suitablilty for your component. |
Component Body Size |
Component Height |
Bake Temperature |
Quantity Pockets Per Tray |
DWG Reference |
Order TopLine Tray Part Number |
5.0 x 4.0mm |
2.9mm |
180°C |
450 |
184590 |
LGATRAY5X4X2.9 |
5.2 x 4.4mm |
1.3mm |
180°C |
450 |
184821 |
LGATRAY5.2X4.4X1.3 |
5.3 x 3.3mm |
1.5mm |
180°C |
450 |
184761 |
LGATRAY5.3X3.3X1.5 |
6.0 x 5.0mm |
1.8mm |
180°C |
40 |
170064 |
LGATRAY6.0X5.0X1.85 |
6.3 x 4.0mm |
2.4mm |
180°C |
450 |
184548 |
LGATRAY6.3X4X2.42 |
6.6 x 5.1mm |
1.3mm |
180°C |
40 |
183792 |
LGATRAY6.6X5.1X1.3 |
6.6 x 6.6mm |
3.2mm |
180°C |
40 |
183633 |
LGATRAY6.6X6.6X3.2 |
7.0 x 5.0mm |
2.7mm |
180°C |
40 |
184314 |
LGATRAY5X7X2.7 |
7.9 x 6.6mm |
2.6mm |
60°C |
300 |
184812 |
LGATRAY7.9x6.6x2.6 |
8.0 x 6.2mm |
0.7mm |
60°C |
300 |
184638 |
LGATRAY8.0X6.2X0.7 |
8.1 x 3.9mm |
2.2mm |
180°C |
450 |
184953 |
LGATRAY8.1X3.9X2.2 |
10.0 x 4.5mm |
1.4mm |
60°C |
40 |
183705 |
LGATRAY10X4.5X1.4 |
10.4 x 6.8mm |
2.3mm |
180°C |
40 |
184248 |
LGATRAY10.3X6.8X2.3 |
11.0 x 10.0mm |
2.5mm |
60°C |
200 |
184452 |
LGATRAY11X10X2.5 |
11.0 x 11.5mm |
1.0mm |
180°C |
140 |
184683 |
LGATRAY11X11X1.0 |
11.0 x 14.0mm |
2.0mm |
180°C |
140 |
184881 |
LGATRAY11X14X2.0 |
11.0 x 17.0mm |
6.8mm |
180°C |
32 |
184817 |
LGATRAY11X17X6.8 |
11.0 x 18.2mm |
2.0mm |
60°C |
40 |
183951 |
LGATRAY11X18.2X2.0 |
11.0 x 20.8mm |
2.5mm |
60°C |
40 |
169959 |
LGATRAY11X21X2.5 |
11.2 x 12.0mm |
2.5mm |
180°C |
40 |
182391 |
LGATRAY11.2X12X2.5 |
11.2 x 15.1mm |
4.4mm |
180°C |
40 |
182637 |
LGATRAY11.2X15X4.4 |
11.5 x 10.3mm |
3.0mm |
180°C |
40 |
183222 |
LGATRAY11.5X10.3X3.0 |
11.5 x 13.0mm |
0.9mm |
180°C |
140 |
184506 |
LGATRAY11.5X13X0.9 |
11.9 x 11.9mm |
7.2mm |
180°C |
48 |
184899 |
LGATRAY11.9SQX7.2 |
12.0 x 11.0mm |
0.9mm |
180°C |
40 |
183684 |
LGATRAY12x11X.9 |
12.9 x 12.9mm |
4.3mm |
180°C |
40 |
184932 |
LGATRAY13x13X4.3 |
13.5 x 8.5mm |
2.0mm |
180°C |
40 |
183795 |
LGATRAY13.5X8.5X2.0 |
13.5 x 17.0mm |
1.0mm |
180°C |
105 |
184662 |
LGATRAY13.5X17X1.0 |
13.6 x 5.6mm |
0.95mm |
60°C |
40 |
184041 |
LGATRAY14X5.6X.95 |
13.6 x 12.5mm |
2.8mm |
180°C |
40 |
184272 |
LGATRAY14X12.5X2.8 |
14.0 x 8.5mm |
2.0mm |
180°C |
40 |
183789 |
LGATRAY14X8.5X2.0 |
14.0 x 24mm |
4.5mm |
180°C |
32 |
183105 |
LGATRAY14X24X4.5 |
14.3 x 20.7mm |
4.6mm |
60°C |
40 |
184389 |
LGATRAY14X20X4.6 |
14.2 x 13.3mm |
2.6mm |
60°C |
40 |
184179 |
LGATRAY14X13.3X2.6 |
14.5 x 13.5mm |
2.5mm |
180°C |
40 |
183795 |
LGATRAY14.5X13.5X2.5 |
15.0 x 20.0mm |
2.8mm |
150°C |
91 |
182886 |
LGATRAY15X20X2.8 |
15.0 x 25.6mm |
3.1mm |
60°C |
60 |
184377 |
LGATRAY15X25.6X3.1 |
16.0 x 16mm |
2.6mm |
60°C |
40 |
184182 |
LGATRAY16X16X2.6 |
17.0 x 16.0mm |
2.5mm |
180°C |
40 |
183297 |
LGATRAY17X16X2.5 |
17.3 x 19.2mm |
2.4mm |
180°C |
72 |
184461 |
LGATRAY17.3X19X2.4 |
17.5 x 3.0mm |
1.0mm |
180°C |
225 |
184800 |
LGATRAY17.5X3X1.0 |
17.5 x 6.0mm |
1.0mm |
180°C |
225 |
184803 |
LGATRAY17.5X6X1.0 |
17.8 x 20.8mm |
2.4mm |
60°C |
40 |
184805 |
LGATRAY17.8X21X2.4 |
17.8 x 30.0mm |
3.5mm |
180°C |
20 |
182478 |
LGATRAY18X30X3.5 |
18.0 x 14.5mm |
3.0mm |
180°C |
40 |
184077 |
LGATRAY18X14.5X3.0 |
18.7 x 16.0mm |
2.3mm |
60°C |
72 |
184455 |
LGATRAY18.7X16X2.3 |
19.0 x 19.0mm |
8.9mm |
180°C |
32 |
182292 |
LGATRAY19x19X8.9 |
19.0 x 20.0mm |
3.2mm |
180°C |
40 |
183756 |
LGATRAY19x20X3.2 |
19.0 x 26.0mm |
4.2mm |
180°C |
20 |
183801 |
LGATRAY19x26X4.2 |
19.2 x 19.2mm |
7.5mm |
180°C |
32 |
191975 |
LGATRAY19.2SQX7.5 |
19.3 x 19.3mm |
1.9mm |
60°C |
60 |
184842 |
LGATRAY20x20X1.9 |
20.0 x 4.1mm |
6.0mm |
180°C |
48 |
174722 |
LGATRAY20x4.1X6.0 |
20.0 x 24mm |
2.6mm |
180°C |
50 |
184632 |
LGATRAY20x24X2.65 |
20.0 x 26.6mm |
1.0mm |
180°C |
10 |
184263 |
LGATRAY20x26.6X1.0 |
20.6 x 29.5mm |
4.5mm |
60°C |
32 |
182703 |
LGATRAY20x230X4.5 |
21.0 x 15mm |
2.0mm |
180°C |
75 |
184806 |
LGATRAY21x15X2.0 |
21.0 x 18.5mm |
1.8mm |
180°C |
40 |
184254 |
LGATRAY21x18.5X1.8 |
21.1 x 27.7mm |
1.8mm |
180°C |
10 |
167949 |
LGATRAY21.1x27.7X1.8 |
22.0 x 17.0mm |
2.2mm |
60°C |
40 |
182892 |
LGATRAY22x17X2.2 |
22.5 x 28.5mm |
4.0mm |
60°C |
40 |
183813 |
LGATRAY22.5x28.5X4 |
23.0 x 16.5mm |
3.2mm |
180°C |
20 |
231632 |
LGATRAY23x16.5X3.2 |
23.0 x 18.5mm |
6.5mm |
60°C |
48 |
184167 |
LGATRAY23x18.5X6.5 |
23.0 x 21.0mm |
3.1mm |
180°C |
10 |
183825 |
LGATRAY23x21X3.1 |
24.4 x 16.1mm |
3.1mm |
180°C |
20 |
183396 |
LGATRAY24x16X3.1 |
25.4 x 12.7mm |
7.0mm |
180°C |
__ |
182319 |
LGATRAY25.4x12.7X7 |
26.0 x 13.0mm |
4.1mm |
60°C |
20 |
183837 |
LGATRAY26x13X4.1 |
26.0 x 16.0mm |
2.2mm |
180°C |
20 |
184422 |
LGATRAY26x16X2.2 |
27.0 x 10.5mm |
3.6mm |
180°C |
100 |
184467 |
LGATRAY27x10.5X3.6 |
27.9 x 7.6mm |
3.6mm |
180°C |
20 |
182700 |
LGATRAY28x8X3.6 |
28.5 x 17.3mm |
4.1mm |
60°C |
32 |
183096 |
LGATRAY28.5x17.3X4 |
30.0 x 12.2mm |
3.3mm |
180°C |
20 |
183546 |
LGATRAY30x12.2X3.3 |
30.0 x 40.0mm |
12mm |
180°C |
16 |
182907 |
LGATRAY30x40X12 |
31.0 x 18.0mm |
3.0mm |
180°C |
20 |
182412 |
LGATRAY31X18X3.0 |
31.0 x 31.0mm |
4.2mm |
180°C |
16 |
183279 |
LGATRAY31X31X4.2 |
31.0 x 31.0mm |
6.2mm |
60°C |
16 |
184464 |
LGATRAY31X31X6.2 |
31.9 x 25.4mm |
3.0mm |
180°C |
10 |
182751 |
LGATRAY32X26X3.0 |
33.0 x 15.0mm |
6.0mm |
180°C |
32 |
183741 |
LGATRAY33X15X6 |
34.0 x 15.3mm |
8.4mm |
180°C |
32 |
184497 |
LGATRAY34X15.3X8.4 |
35.0 x 25.0mm |
3.0mm |
180°C |
28 |
184647 |
LGATRAY35X25X3.0 |
35.6 x 17.6mm |
4.5mm |
180°C |
20 |
183759 |
LGATRAY36X17.6X4.5 |
36.0 x 20.0mm |
12mm |
180°C |
24 |
182664 |
LGATRAY36X20X12 |
36.0 x 30.0mm |
3.2mm |
60°C |
24 |
184869 |
LGATRAY36X30X3.2 |
37.5 x 37.5mm |
3.9mm |
180°C |
21 |
184728 |
LGATRAY37.5X37.5X4 |
38.0 x 18.0mm |
1.5mm |
60°C |
42 |
184404 |
LGATRAY38X18X1.5 |
39.0 x 23.0mm |
5.0mm |
180°C |
16 |
118506 |
LGATRAY39X23X5 |
39.0 x 23.0mm |
3.8mm |
60°C |
24 |
181941 |
LGATRAY39X23X3.8 |
39.2 x 5.6mm |
5.0mm |
180°C |
46 |
182451 |
LGATRAY39X5.6X5 |
39.3 x 37.5mm |
3.8mm |
180°C |
18 |
184725 |
LGATRAY39.3X37.5X4 |
40.0 x 24.3mm |
1.7mm |
180°C |
10 |
183708 |
LGATRAY40X24.3X1.7 |
40.0 x 25.0mm |
5.0mm |
180°C |
16 |
169890 |
LGATRAY40X25X5.0 |
40.0 x 32.4mm |
3.0mm |
180°C |
18 |
184644 |
LGATRAY40X32X3.0 |
40.0 x 34.9mm |
3.0mm |
180°C |
18 |
184653 |
LGATRAY40X34.9X3.0 |
42.0 x 31.5mm |
3.8mm |
180°C |
18 |
184887 |
LGATRAY42X31.5X3.8 |
42.0 x 31.5mm |
5.5mm |
180°C |
16 |
184692 |
LGATRAY42X31.5X5.5 |
45.2 x 27.4mm |
4.0mm |
60°C |
10 |
183810 |
LGATRAY48.2X27.4X4 |
48.0 x 25.3mm |
1.9mm |
180°C |
24 |
184782 |
LGATRAY48X25.3X1.9 |
50.8 x 50.8mm |
9.5mm |
60°C |
8 |
184614 |
LGATRAY51X51X9.5A |
50.8 x 50.8mm |
9.5mm |
180°C |
8 |
184620 |
LGATRAY51X51X9.5B |
55 x 54mm |
3.9mm |
180°C |
8 |
163081 |
LGATRAY55X54X3.9 |
58 x 58mm |
5.9mm |
180°C |
4 |
183243 |
LGATRAY58X58X5.88 |
61 x 61mm |
4.0mm |
180°C |
8 |
182919 |
LGATRAY61X61X4.0 |
64 x 58mm |
1.75mm |
60°C |
8 |
183327 |
LGATRAY64X58X1.75 |
67.6 x 31mm |
5.0mm |
60°C |
8 |
183777 |
LGATRAY67.6X31X5 |
72 x 31mm |
5.2mm |
60°C |
8 |
183744 |
LGATRAY72X31X5.2A |
|
|
|
