Zero Ohm Jumpers | |||
 | ||||
|
|
||||
| Go to--> Chip Menu Chip Cap Tantalum Inductor Melf AL Cap Crystal Chip Array |
|
||||||
 Zero Ohm Jumpers • Chip Codes |
||||||
| Size (inch) |
Size (metric) |
Qty on Reel |
Tape Width | Order Number Outline Drawing |
Circuit | |
| 01005 Zero Ohm |
0402 0.4 x 0.2mm |
20,000 10,000 5,000 1,000 |
8mm - Paper | SR01005P7A-ZERO | Circuit | |
| 0201 Zero Ohm |
0603 0.6 x 0.3mm |
15,000 10,000 1,000 |
8mm - Paper | SR0201P7A-ZERO | Circuit | |
| 0402 Zero Ohm |
1005 1.0 x 0.5mm |
10,000 1,000 |
8mm - Paper | SR0402P7A-ZERO | Circuit | |
| 0603 Zero Ohm |
1608 1.6 x 0.8mm |
5,000 1,000 |
8mm - Paper | SR0603P7A-ZERO | Circuit | |
| 0705 Zero Ohm |
2012 2.0 x 1.2mm |
5,000 1,000 |
8mm - Paper | SR0705P7A-ZERO | Circuit | |
| 0805 Zero Ohm |
2012 2.0 x 1.2mm |
5,000 1,000 |
8mm - Paper | SR0805P7A-ZERO | Circuit | |
| 1206 Zero Ohm |
3216 3.2 x 1.6mm |
5,000 1,000 |
8mm - Paper | SR1206P7A-ZERO | Circuit | |
| 1210 Zero Ohm |
3225 3.2 x 2.5mm |
4,000 1,000 |
8mm - Plastic | SR1210E7A-ZERO | Circuit | |
| 2010 Zero Ohm |
5025 5.0 x 2.5mm |
4,000 250 |
12mm - Plastic | SR2010E7A-ZERO | Circuit | |
| 1812 Zero Ohm |
4532 4.5 x 3.2mm |
4,000 500 |
12mm - Plastic | SR1812E7A-ZERO | Circuit | |
| 2512 Zero Ohm |
6332 6.3 x 3.2mm |
4,000 250 |
12mm - Plastic | SR2512E7A-ZERO | Circuit | For Lead Free, add -TIN to end of part number. Example: SR0402P7A-ZERO-TIN |
 Embedded Zero Ohm Jumpers • Chip Codes • More Details |
||||||
| Size (inch) |
Size (metric) |
Qty on Reel |
Tape Width | Order Number Outline Drawing |
Circuit | |
| 01005 Zero Ohm |
0402 0.4 x 0.2mm |
20,000 5,000 1,000 |
8mm - Paper | eSR01005P7A-ZERO-CU | Circuit | |
| 0201 Zero Ohm |
0603 0.6 x 0.3mm |
15,000 5,000 1,000 |
8mm - Paper | eSR0201P7A-ZERO-CU | Circuit | |
| 0402 Zero Ohm |
1005 1.0 x 0.5mm |
10,000 5000 1,000 |
8mm - Paper | eSR0402P7A-ZERO-CU | Circuit | |

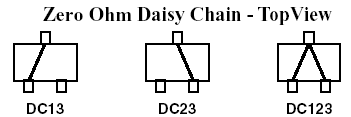

 SOT23/SOT323/SC70  SOT25/SOT353  SOT26/SOT363  SOT143/SOT343 |
||||||
| Size inch |
Size (metric) |
Qty on Reel |
Tape Width | Order Number Outline Drawing |
Circuit Daisy Chain |
|
| SOT23 Zero Ohm |
2.9 x 1.6mm | 3,000 | 8mm - Plastic |
SOT23E7A-DC13 SOT23E7A-DC23 SOT23E7A-DC123 |
Circuit | |
| SOT25 Zero Ohm |
2.9 x 1.6mm | 3,000 | 8mm - Plastic |
SOT25E7A-DC15 SOT23E7A-DC19 |
Circuit | |

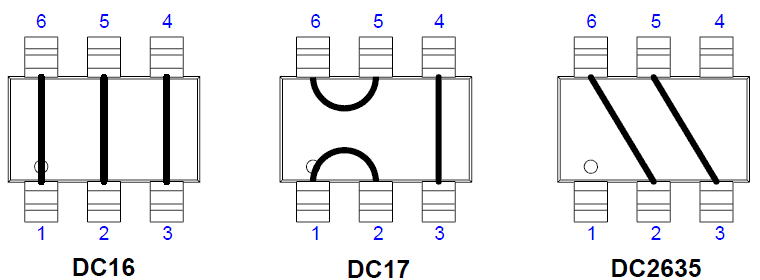

| SOT26 Zero Ohm |
2.9 x 1.6mm | 3,000 | 8mm - Plastic |
SOT26E7A-DC16 SOT26E7A-DC17 |
Circuit | |

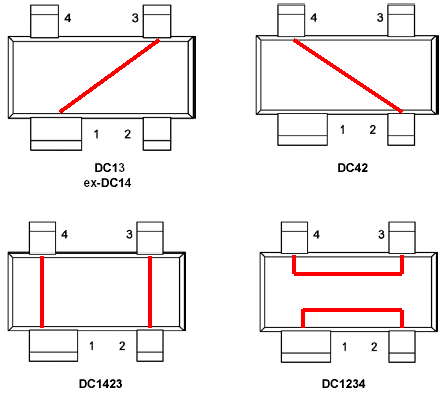

| SOT143 Zero Ohm |
2.9 x 1.6mm | 3,000 | 8mm - Plastic |
SOT143E7A-DC14 SOT143E7A-DC1234 SOT143E7A-DC1423 |
Circuit | |
| SOT323 Zero Ohm |
2.0 x 1.25mm | 3,000 | 8mm - Plastic |
SOT323E7A-DC13 SOT323E7A-DC23 SOT323E7A-DC123 |
Circuit | |
| SOT343 Zero Ohm |
2.0 x 1.25mm | 3,000 | 8mm - Plastic |
SOT343E7A-DC14 SOT343E7A-DC1234 SOT343E7A-DC1423 |
Circuit | |
| SOT353 Zero Ohm |
2.0 x 1.25mm | 3,000 | 8mm - Plastic |
SOT353E7A-DC25 SOT353E7A-DC19 |
Circuit | |
| SOT363 Zero Ohm |
2.0 x 1.25mm | 3,000 | 8mm - Plastic |
SOT363E7A-DC16 SOT363E7A-DC17 |
Circuit | |
| For Lead Free, add -TIN after the "E7A" in the part number. Example: SOT23E7A-TIN-DC13 | ||||||
| Please ask about other packages available in Zero Ohm Jumper. Example: SOD, DPAK, SOIC, SSOP, TSSOP, QSOP, QFP, BGA, etc. | ||||||
|
