Solderable SMT Spacers Use for Holding Up Components |
|||
 | ||||
|
|
||||
| Chip Menu Resistor Tantalum Inductor Melf AL Cap Crystal Array Jumpers -Zero Ohm |
|
SMT spacers holds up and supports other components on PCB. Spacer Questionnaire |
|
|
||||||||
 Plastic (Non Conductive) - Bottom Terminal Style Leads |
|||||||
| Size Code Inch (metric) |
Footprint Inch (metric) |
Body | Termination (Plating) |
Packaging | Solidworks Rotatable Model |
Height ±10% Tolerance |
Order Number Outline Drawing |
| 1206 (3216) |
0.126"x0.063" (3.2 x 1.6mm) |
FR4 | Cu Copper Matte Sn100 Plated |
T&R 1000pcs Reel |
PCB Layout PCB Mounted Model Rotatable Model |
0.5mm 0.8mm 1.0mm 1.3mm 1.5mm 1.6mm 1.8mm 1.9mm 2.0mm 2.2mm 2.4mm 3.2mm 4.0mm |
SSL120620E7A-G SSL120630E7A-T SSL120640E7A-T SSL120650E7A-T SSL120659E7A-T SSL120660E7A-T SSL120670E7A-T SSL120675E7A-G SSL120680E7A-T SSL120685E7A-T SSL120695E7A-T SSL1206120E13A-T SSL1206157E13A-T |
| Feaatures: Insulative top. Fully isolated circuit. | |||||||
| Part Number: 8th~9th character is height in mils: 30, 40, 50, 60, 70, 75, 80, 85, 95, 120, 157 etc. | |||||||
| Packaging Code: E7A = 7-inch Reel • E13A = 13-Inch Reel • E = Partial Reel | |||||||
| Bottom Terminal (Suffix): -T = Sn100 (Tin) • -G = ENIG (Ni/Au) | |||||||
| Example Part#: SSL120675E7A-T • 75mil (1.9mm) high • Sn or ENIG Terminals • 7" Reel | |||||||
| Other sizes available. | |||||||
| • REACH Declaration • Materials Declaration 94V-0 Flame Retardent | |||||||
 | |||||||
 Plastic (Non Conductive) - Bottom Terminal Style Leads |
|||||||
| Size Code Inch (metric) |
Footprint Inch (metric) |
Body | Termination (Plating) |
Packaging | Solidworks Rotatable Model |
Height ±10% Tolerance |
Order Number Outline Drawing |
| 0805 (2012) |
0.08"x0.05" (2.0 x 1.2mm) |
FR4 | Cu Copper Ni-Au Plated |
T&R 3000pcs Reel |
Rotatable Model |
0.85mm |
SSL080533E7A-G |
| 0805 (2012) |
0.08"x0.05" (2.0 x 1.2mm) |
FR4 | Cu Copper Ni-Au Plated |
T&R 1000pcs Reel |
Rotatable Model |
2.5mm |
SSL080598E13A-G |
| 0805 (2012) |
0.08"x0.05" (2.0 x 1.2mm) |
FR4 | Cu Copper Ni-Au Plated |
T&R 1000pcs Reel |
Rotatable Model |
3.0mm |
SSL0805118E13A-G |
| Features: Insulative top. Fully isolated circuit. | |||||||
| Part Number: 8th~9th character is height in mils: 33, 40, 50, 60, 70, 75, 80, 85, 95, etc. | |||||||
| Packaging Code: E7A = 7-inch Reel • E13A = 13-Inch Reel • E = Partial Reel | |||||||
| Bottom Terminal (Suffix): -G = ENIG Ni-Au • -T = Sn100 (Tin) | |||||||
| Example Part#: SSL080533E7A-G • 33mil (0.85mm) high • Ni-Au Gold Terminals • 7" Reel | |||||||
| Other sizes available. | |||||||
| |||||||

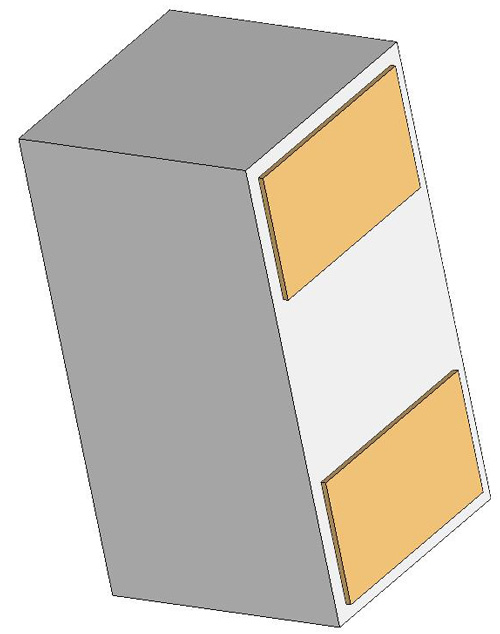

 Plastic (Non Conductive) - Bottom Terminal Style Leads |
|||||||
| Size Code Inch (metric) |
Footprint Inch (metric) |
Body | Termination (Plating) |
Packaging | Solidworks Rotatable Model |
Height ±7% Tolerance |
Order Number Outline Drawing |
| 0603 (1608) |
0.06"x0.03" (1.5 x 0.8mm) |
RO-4003C | Cu Copper Ni-Au Plated |
T&R 3000pcs Reel |
Rotatable Model |
0.80mm |
SSL060332E7A-WHITE-G |
| 0603 (1608) |
0.06"x0.03" (1.5 x 0.8mm) |
RO-4003C | Cu Copper Ni-Au Plated |
T&R 3000pcs Reel |
Rotatable Model |
0.85mm |
SSL060333E7A-WHITE-G |
| 0603 (1608) |
0.06"x0.03" (1.5 x 0.8mm) |
FR4 | Cu Copper Ni-Au Plated |
T&R 3000pcs Reel |
Rotatable Model |
1.00mm |
SSL060340E7A-G |
| Features: Insulative top. Fully isolated circuit. | |||||||
| Part Number: 8th~9th character is height in mils: 32, 33, 40, 50, 60 etc. | |||||||
| Packaging Code: E7A = 7-inch Reel • E = Partial Reel | |||||||
| Bottom Terminal (Suffix): -G = ENIG Ni-Au | |||||||
| Example Part#: SSL060332E7A-G • 32mil (0.8mm) high • Ni-Au Gold Terminals • 7" Reel | |||||||
| Other sizes available. | |||||||
| |||||||

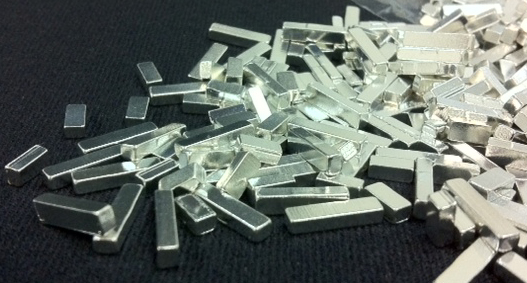

 Conductive SolderableCopper Bar |  Tin Plated |
||||||
| Length Metric (Inch) |
Width Metric (Inch) |
Height Metric (Inch) |
Body | Plating | Packaging Reel Qty |
Rotatable Model |
Order Number Outline Drawing |
| 2.3mm (0.090") |
1.6mm (0.063") |
2.54mm (0.100") |
Cu | Sn-Tin | 1000 | Rotatable Solidworks Model |
SSC090610E13A-T |
| 5.5mm (0.216") |
2.0mm (0.079") |
2.54mm (0.100") |
Cu | Sn-Tin | 1000 | Rotatable Solidworks Model |
SSC210810E13A-T |
| 11.0mm (0.433") |
2.0mm (0.079") |
2.54mm (0.10") |
Cu | Sn-Tin | 1000 | Rotatable Solidworks Model |
SSC430810E13A-T |
| Other sizes available. Fully conductive all sides. 8µm thick Tin (Sn) plating on 6-sides. Solderable on any side. | |||||||
| Tape Dimensions: SSC210810 W=16mm P=8mm • SCC430810 W=24mm P=8mm | |||||||
| |||||||

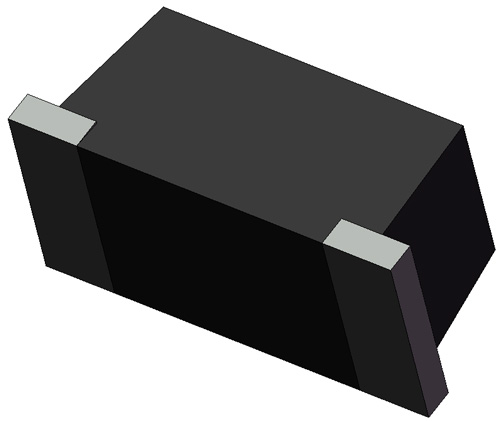

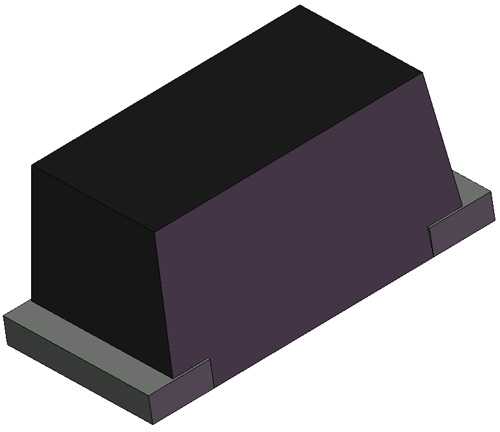

  Plastic Body with Solderable Flat Style Leads Non-Conductive (Insulative > 1000 VDC) Strong and Durable. Supports heavy 5Kg load. Use to hold up a PCB or component. |
||||||||
| Device PKG |
Size Plastic Top Area (metric) |
Footprint Length |
Footprint Width |
Height | Packaging Reel Qty |
Solidworks Rotatable Model |
Order Number Isolated Open Circuit |
Order Number Zero Ohm Jumper |
| SOD323FS FM400N-NS |
1.9 x 1.2mm | 2.6 | 1.3 | 0.77 | 3000 | Rotatable Solidworks Model |
SOD323FS-E7A-T-ISO | SOD323FS-E7A-T-DC12 |
| SOD323FW FM400N-N |
1.8 x 1.25mm | 2.5 | 1.25 | 1.0 | 3000 | Rotatable Solidworks Model |
SOD323FW-E7A-T-ISO | SOD323FW-E7A-T-DC12 |
| SOD123FW FM400N-M |
3.2 x 1.6mm | 3.5~ 3.9 |
1.5~ 1.9 |
1.3~ 1.7 |
2500 | Rotatable Solidworks Model |
SOD123FW-E7A-T-ISO | SOD123FW-E7A-T-DC12 |
| SMA-F FM400N DO-214AC DO-215AC SOD106 |
4.0 x 2.5mm | 4.5~ 4.9 |
2.3~ 2.7 |
1.6 ±0.025mm |
2000 7500 |
Rotatable Solidworks Model |
SMAF-E7A-T-ISO SMAF-E13A-T-ISO |
SMAF-E7A-T-DC12 SMAF-E13A-T-DC12 |
| SMB-F FM20N-B DO-214AA DO-215AA |
4.5 x 3.5mm | 5.0~ 5.4 |
3.2~ 3.6 |
1.7~ 1.9 |
4000 | Rotatable Solidworks Model |
SMBF-E13A-T-ISO | SMBF-E13A-T-DC12 |
| SMC-F FM30N DO-214AB DO-215AB |
6.0 x 4.5mm | 6.3~ 6.9 |
4.2~ 4.8 |
1.9~ 2.5 |
3000 | Rotatable Solidworks Model |
SMCF-E13A-T-ISO | SMCF-E13A-T-DC12 |
| Other sizes available. Insulative on top side. Solderable on bottom side. | ||||||||
 Ceramic Chip Spacer (Non-Metal Adhesive Mount) |
|||||
| Size (inch) |
Size (metric) |
Height | Qty on Reel |
Reel Order Number |
Rotatable Model |
| 0201 | 0603 0.6 x 0.3mm |
0.3mm | 15000 | SCC0201P7A-WHITE Standard Height SCC0201 Precision Height Height 0.20mm ~ 0.5mm GCC0201 Glass Precision Height Height 0.20mm ~ 0.5mm |
360° Model |
| 0402 | 1005 1.0 x 0.5mm |
0.5mm | 10000 | SCC0402P7A-WHITE |
360° Model |
| 0603 | 1608 1.6 x 0.8mm |
0.75mm | 4000 | SCC0603P7A-WHITE |
360° Model |
| 0805 | 2012 2.0 x 1.2mm |
0.94mm | 4000 | SCC0805E7A-WHITE |
360° Model |
| 1206 | 3216 3.2 x 1.6mm Low Profile 0.8mm |
0.80mm | 4000 | SCC1206P7A-WHITE-.8MM |
360° Model |
| 1206 | 3216 3.2 x 1.6mm High Profile 1.2mm |
1.2mm | 3000 | SCC1206E7A-WHITE-1.2MM |
360° Model |
| Other sizes available. Fully insulative on top side. Glue to board with adhesive on bottom side. | |||||

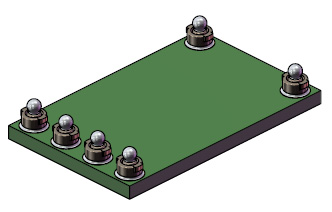

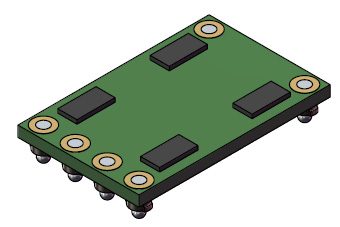

 Conductive solderable Jumper/Spacer. Electrically connects module to PCB Placement by pick and place machine. |
|||||||
| Device PKG |
Ring Footprint |
Ball Diameter |
Plated Hole |
Height | Packaging Reel Qty |
Solidworks Rotatable Model |
Order Number Zero Ohm Jumper |

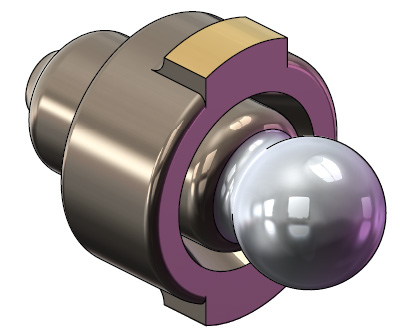

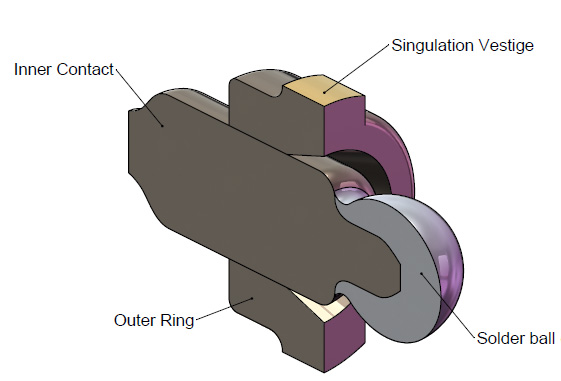

| SBC305 SAC305 Ball |
Ø1.9mm max |
Ø1.12mm Max |
Ø1.12mm Typ |
2.0mm | 2000 | SBC305_Model Example PCB |
SBC305E13A E.O.L. End of Life Not for new Designs |

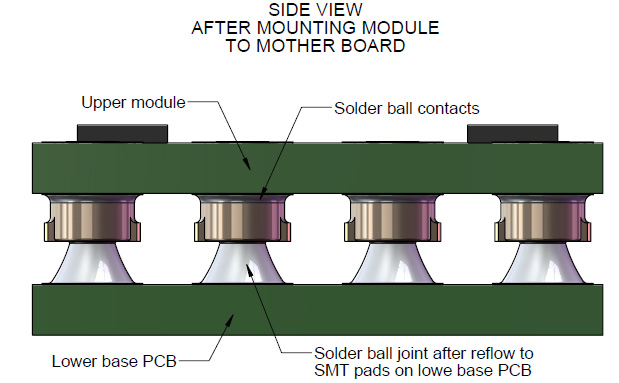

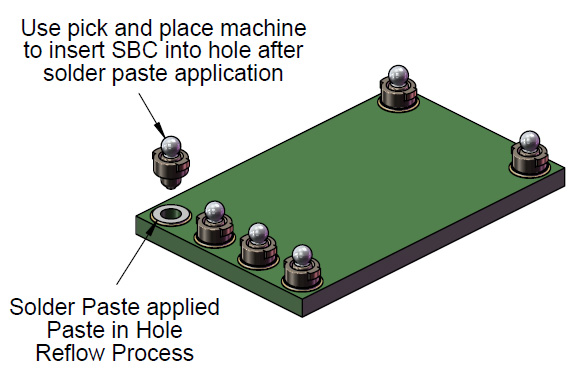

| Assembly method Step 1: Apply SAC305 solder paste using "paste-in-hole" method in plated throughholew on module. Step 2: Use pick and place machine to insert the SBC305 contact into the module. Step 3: Reflow the SBC305 along with other components using normal lead free temperature profile. Step 4: The module mounts to mother board using pick and place machine. Step 5: Reflow the module to the mother board using normal BGA solder ball SMT processes. | |||||||
| e-Drawings viewer for rotatable models: Download | |||||||
|
