Heat Spreader
for BGA and CCGA

BGA • CCGA • CCGA Solder Columns • Library • Mat'l Properties • CCGA Trays • CCGA Tools •

ABOUT Heat Spreaders: "HAT" shaped or flat Heat Spreaders are made from Nickel Plated Copper Alloy for BGA packages. Copper heat spreaders are attached directly to the top of the chip package using a thermal interface material (TIM) such as SE 4450 Adhesive. AlSiC Heat Spreaders are made of aluminum mixed with Silicon-Carbide particles for CCGA packages. This combination results in a low CTE composite that is able to dissipate heat generated by the die on ceramic CCGA packages. AlSiC have high thermal conductivity and low thermal expansion compatible with semiconductor silcon chips and ceramic substrates enabling higher performance to prevent fatigue failure. The AlSiC heat spreader is attached directly to the top of the power chip using a thermal interface material (TIM) such as SE 4450 Adhesive. The thermal conductivity rate of AlSiC permits chip heat to be distributed evenly with higher performance for reliability and stability. AlSiC-8 material composition is 37% volume of Al and 63% volume of SiC. The heat sink is plated with electroless nickel (Ni) 4~8 um (157~315 micro-inch) thickness.



H-CAP Series "HAT" Copper Dome Shaped Heat Spreader for BGA

TOP				BOTTOM
DWG	BGA Size (mm)	Total Height	Die Height	Part Number	Die Size Max	Material	SolidWorks Model
211710	11 x 11mm 10.8x10.8mm	1.3mm	0.85mm	H-CAP11A	6x6mm	Cu Alloy	Model
213710	13 x 13mm	1.38mm	0.88mm	H-CAP13A	8x8mm	Cu Alloy	Model
217710	17 x 17mm	1.3mm	0.8mm	H-CAP17B	11x11mm	Cu Alloy	Model
219710	19 x 19mm	1.3mm	0.8mm	H-CAP19A	13x13mm	Cu Alloy	Model
221710	21 x 21mm	1.3mm	0.8mm	H-CAP21A	15x15mm	Cu Alloy	Model
223710	23 x 23mm	1.3mm	0.8mm	H-CAP23A	17x17mm	Cu Alloy	Model
225710	25 x 25mm	1.3mm	0.8mm	H-CAP25A	18x18mm	Cu Alloy	Model
227710	27 x 27mm	1.3mm	0.8mm	H-CAP27A	19x19mm	Cu Alloy	Model
229710	29 x 29mm	1.3mm	0.8mm	H-CAP29A	21x21mm	Cu Alloy	Model
231710	31 x 31mm	1.3mm	0.8mm	H-CAP31A	23x23mm	Cu Alloy	Model
235710	35 x 35mm	1.3mm	0.8mm	H-CAP35B	25x25mm	Cu Alloy	Model
237710	37.5 x 37.5mm	1.3mm	0.8mm	H-CAP37.5A	27x27mm	Cu Alloy	Model
240711	40 x 40mm	1.3mm	0.8mm	H-CAP39.6B	29x29mm	Cu Alloy	Model
240710	40 x 40mm	1.3mm	0.8mm	H-CAP40A	30x30mm	Cu Alloy	Model
242710	42.5 x 42.5mm	1.3mm	0.8mm	H-CAP42.5A	32x32mm	Cu Alloy	Model
245710	45 x 45mm	1.85mm	0.85mm	H-CAP45A	35x35mm	Cu Alloy	Model
247710	47.5 x 47.5mm	1.85mm	0.85mm	H-CAP47.3A	37x37mm	Cu Alloy	Model
250710	50 x 50mm	1.8mm	0.8mm	H-CAP50A	36x36mm	Cu Alloy	Model
252710	52.5 x 52.5mm	1.8mm	0.8mm	H-CAP52.5A	38x38mm	Cu Alloy	Model
255710	55 x 55mm	1.8mm	0.8mm	H-CAP55B	41x41mm	Cu Alloy	Model
260710	60 x 60mm	1.8mm	0.8mm	H-CAP60A	42x42mm	Cu Alloy	Model

Base Material: Cu Copper Alloy UNS C10200 or C11000. Half-Hard. Oxygen Free
Plating: Nickel (Ni) 5um Min. Semi-Finish
Vent Hole: For vented BGA



F-CAP Series "Copper" FLAT Cavity Heat Spreader for BGA

TOP				BOTTOM
DWG	BGA Size (mm)	Total Height	Die Height	Part Number	Style	Material	SolidWorks Model
210790	10 x 10mm	1.6mm	0.8mm	F-CAP10A	Flat Cavity Lid	Cu Alloy	Model
242790	42.5 x 42.5mm	1.6mm	0.8mm	F-CAP42.5A	Flat Cavity Lid	Cu Alloy	Model
252790	52.5 x 52.5mm	1.6mm	0.8mm	F-CAP52.5A	Flat Cavity Lid	Cu Alloy	Model

Base Material: Cu Copper Alloy UNS C10200 or C11000. Half-Hard. Oxygen Free
Plating: Nickel (Ni) 5um Min. Semi-Finish
Custom sizes available.

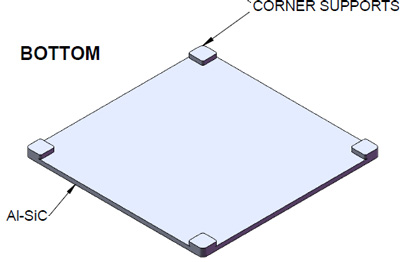

CN Series "AlSiC" Heat Spreader Cover for CCGA

DWG	CCGA Size (mm)	Max Die Height	Part Number	Supports	Material	SolidWorks Model
111310	31mm	1.95mm	CN-CAP31A	4-Corner Posts	AlSiC	Model
111320	32.5mm	1.95mm	CN-CAP32A	4-Corner Posts	AlSiC	Model
111350	35mm	1.95mm	CN-CAP35A	4-Corner Posts	AlSiC	Model
111370	37.5mm	1.95mm	CN-CAP37A	4-Corner Posts	AlSiC	Model
111400	40mm	1.95mm	CN-CAP40A	4-Corner Posts	AlSiC	Model
111420	42.5mm	1.95mm	CN-CAP42A	4-Corner Posts	AlSiC	Model
111450	45mm	1.95mm	CN-CAP45A	4-Corner Posts	AlSiC	Model
111520	52.5mm	1.95mm	CN-CAP52A	4-Corner Posts	AlSiC	Model
111000	All	1.95mm	CN-CAP ALL	4-Corner Posts	AlSiC	Model

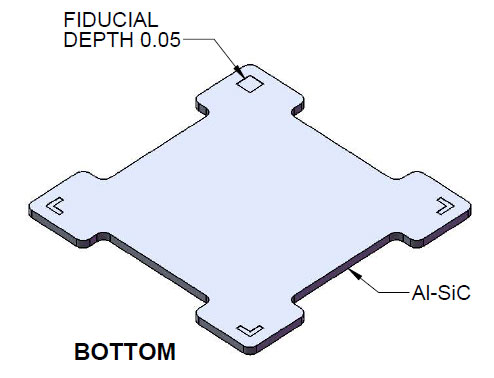

CF Series "AlSiC" Flat Style Heat Spreader Cover for CCGA

DWG	CCGA Size (mm)	Heatspreader Thickness	Part Number	Style	Material	SolidWorks Model
112033	35 x 35mm	1.0mm	CF4-CAP33C	Flat Lid Cloverleaf Design	AlSiC	Heatspreader Model Attached to CCGA Model



MATERIAL SPECIFICATIONS
Material	Density g/cm³	CTE ppm/^oC [25~150°C]	Youngs Modulus GPa	Thermal Conductivity W/mK @25°C	Fracture Toughness MPa*m^1/2	Mohs Scale of Hardness	Bending Strength
AlSiC-8 37% Vol Al 63% Vol SiC	2.83	8~9	188	170~189	8	8~9	3200
UNS C10200 Copper Alloy	8.9	17	115	400	-	-	-



Recommended Thermally Conductive SE 4450 Adhesive for Attaching Heat Spreaders to Ceramic Substrates

Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.
Download
